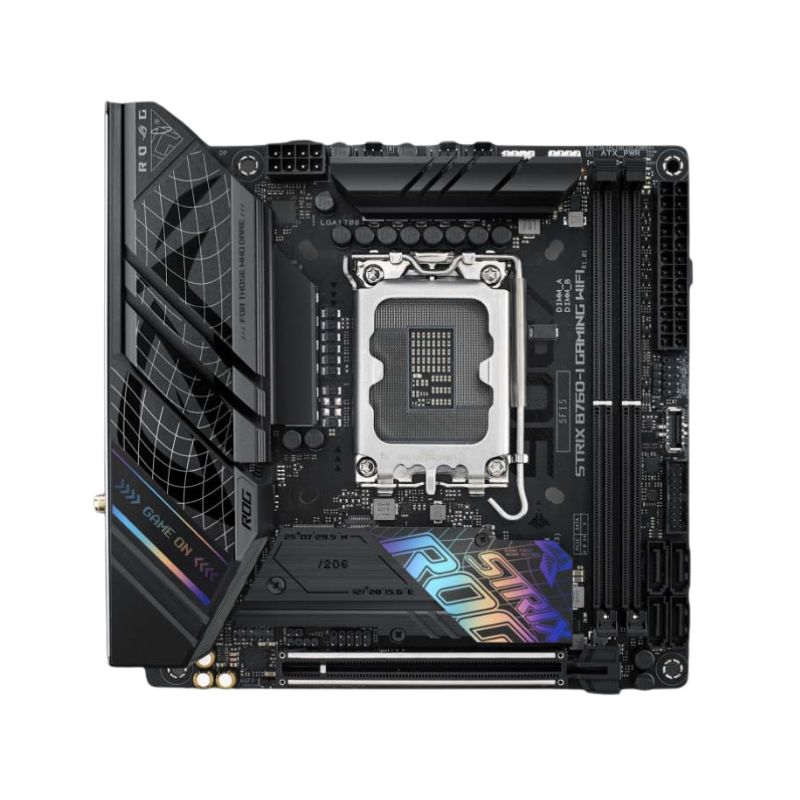

Asus ROG Strix B760-I GAMING WiFi DDR5

249,00 €

SKU: 002-4697

Categories: Intel Motherboards, Motherboards

Brand: Asus

Description

Feature	Specification
Model	ROG STRIX B760-I GAMING WIFI
CPU	Supports Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold, and Celeron® Processors (LGA1700), Intel® Turbo Boost Technology 2.0 & 3.0
Chipset	Intel® B760
Memory	2 x DIMM, Max. 96GB, DDR5 7600+(OC)/7466(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz, Dual Channel, Supports XMP & OptiMem II
Graphics	1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI™ 2.1 (4K@60Hz)
Expansion Slots	1 x PCIe 5.0 x16 slot (CPU)
Storage	2 x M.2 slots (PCIe 4.0 x4) 4 x SATA 6Gb/s Supports Intel® Rapid Storage Technology (RAID 0/1/5/10)
Ethernet	1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E (2×2, 2.4/5/6GHz), Bluetooth® 5.3
USB (Rear)	1 x USB 3.2 Gen 2×2 Type-C (20Gbps) 4 x USB 3.2 Gen 1 (3 x Type-A, 1 x Type-C) 3 x USB 2.0 Type-A
USB (Front)	1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports
Audio	ROG SupremeFX 7.1-Channel HD Audio CODEC S1220A Supports up to 32-Bit/192 kHz playback SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium capacitors
Back Panel I/O	1 x USB 3.2 Gen 2×2 Type-C (20Gbps) 4 x USB 3.2 Gen 1 (3 x Type-A, 1 x Type-C) 3 x USB 2.0 Type-A 1 x HDMI™ 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio jacks
Internal I/O Connectors	1 x 24-pin ATX Power Connector 1 x 8-pin +12V Power Connector 2 x M.2 slots 4 x SATA 6Gb/s 1 x USB 3.2 Gen 2 Type-C 2 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports 1 x Addressable Gen 2 header 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Cooling & Fan Headers	1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header 1 x 4-pin AIO Pump header
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Special Features	Extreme Engine Digi+, 5K Black Metallic Capacitors ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot) ASUS Thermal Solution (M.2 heatsink backplate) ASUS EZ DIY (CPU Socket lever protector, Pre-mounted I/O shield, SafeSlot, SafeDIMM) Aura Sync (Aura RGB header, Addressable Gen 2 header)
Software Features	ROG Exclusive Software (GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III, DTS® Sound Unbound) ASUS Armoury Crate (AIDA64 Extreme 60-day trial, AURA Creator, AURA Sync, Fan Xpert 4, AI Noise Cancelation, Power Saving) AI Suite 3 (Performance & Power Saving Utility, PC Cleaner, DIGI+ VRM) MyAsus, Norton 360 for Gamers, WinRAR
Operating System	Windows® 11, Windows® 10 64-bit
Accessories	2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable 1 x Thermal pad for M.2 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card 1 x User manual
Form Factor	Mini-ITX, 6.7 inch x 6.7 inch (17 cm x 17 cm)
