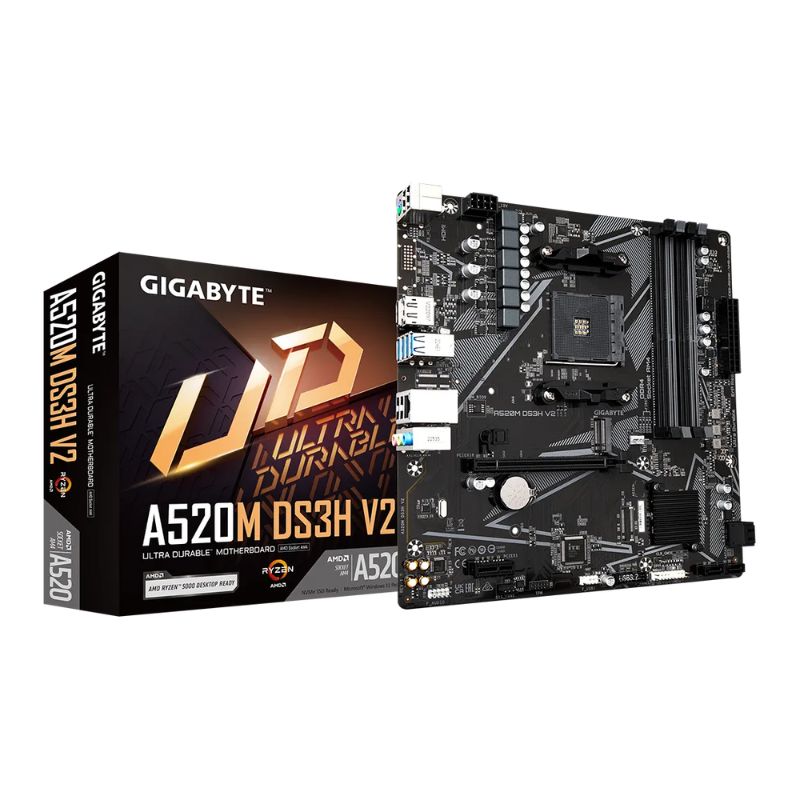

Gigabyte A520M DS3H V2 (rev. 1.0) AM4
99,00 €
SKU: 002-4903
Categories: AMD Motherboards, Motherboards
Brand: Gigabyte
Description
| Model | Gigabyte A520M Motherboard |
|---|---|
| Chipset | AMD A520 |
| CPU Support | AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series Processors (Socket AM4) |
| Memory | Type: DDR4, Dual Channel Slots: 4 x DDR4 DIMM Sockets Max Capacity: 128GB (32GB per DIMM) Speeds: Up to DDR4 4733(O.C.) MHz (varies by CPU) Features: ECC & Non-ECC Unbuffered DIMM Support, XMP Support |
| Expansion Slots | PCIe 3.0 x16 Slot: 1 (x16 mode, integrated in CPU) PCIe 3.0 x1 Slot: 1 (from Chipset) |
| Graphics | Integrated: Available for processors with integrated graphics Outputs: 1 x DisplayPort (5120×2880 @ 60Hz), 1 x HDMI™ 2.1 (4096×2160 @ 60Hz) Max Shared Memory: 16GB |
| Storage | SATA: 4 x SATA3 6Gb/s (RAID 0, 1, 10 Support) M.2: 1 x M.2 (PCIe 3.0 x4/x2 & SATA, 2280 support) |
| USB Ports | Rear: 4 x USB 3.2 Gen1, 2 x USB 2.0/1.1 Front: 2 x USB 3.2 Gen1 (via header), 4 x USB 2.0/1.1 (via headers) |
| Audio | Codec: Realtek® High Definition Audio Channels: 2/4/5.1/7.1 (Configurable via Software) |
| LAN | Controller: Realtek® GbE LAN (1 Gbps) |
| Internal Connectors | Cooling: 1 x CPU Fan (4-pin), 1 x System Fan (4-pin) Power: 1 x 24-pin ATX, 1 x 8-pin 12V Misc: TPM Header, Clear CMOS Jumper, Front Panel, Audio, USB Headers |
| Rear I/O Ports | Display: 1 x DisplayPort, 1 x HDMI™ 2.1 USB: 4 x USB 3.2 Gen1, 2 x USB 2.0/1.1 Networking: 1 x RJ-45 Gigabit LAN Port Audio: 3 x Audio Jacks Other: 1 x PS/2 Keyboard/Mouse Port |
| BIOS | 128 Mb AMI UEFI BIOS |
| Software Features | APP Center, Q-Flash, @BIOS, EasyTune, System Information Viewer, Smart Backup |
| Operating System Support | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
