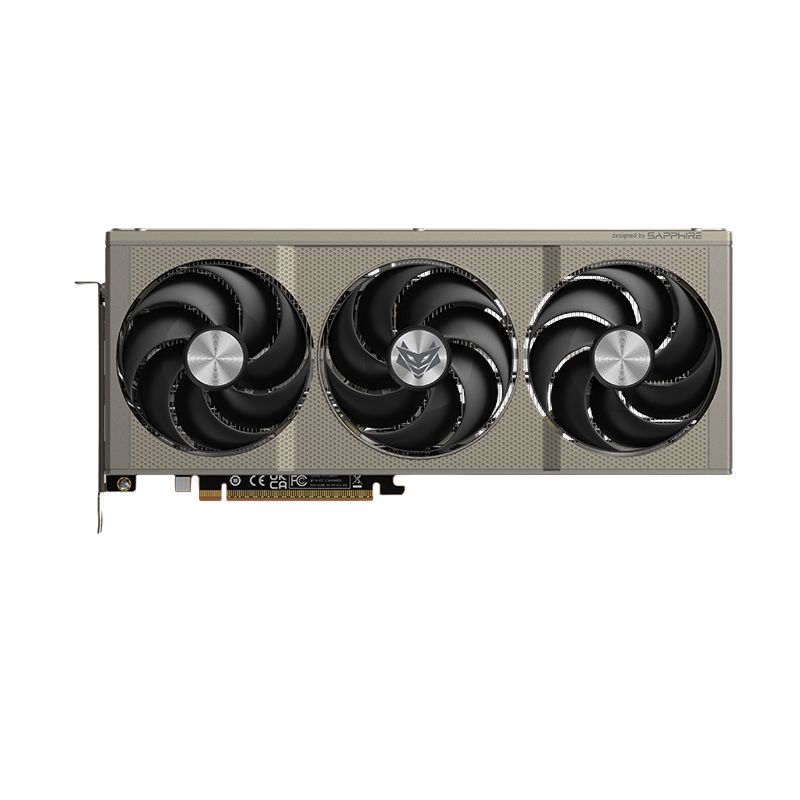

Sapphire AMD Radeon RX 9060 XT Nitro+ OC 16GB GDDR6

619,00 €

SKU: 005-7003

Categories: AMD Graphics Cards, Graphics Cards (GPUs)

Brand: Sapphire

Description

Category	Specification
GPU	AMD Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture
Engine Clock	Boost Clock: Up to 3320 MHz Game Clock: Up to 2780 MHz
Stream Processors / CUDA Cores / Xe Cores	2048 Stream Processors
Compute Units / Ray Tracing Units	32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) 32 Ray Accelerators
Infinity Cache / L2 Cache	32MB Infinity Cache
AI Accelerators / XMX Engines	64 AI Accelerators
Memory Size / Bus	16GB GDDR6 / 128-bit
Memory Clock	20 Gbps Effective
Memory Bandwidth	Not specified
Maximum Displays	3 Displays
Resolution	HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320
Interface	PCI-Express 5.0 x16
Outputs	2x HDMI® 1x DisplayPort™ 2.1a
BIOS Support	UEFI
Game Index	1440P
Cooler Type	Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing
Form Factor	2.7-slot, ATX
Dimensions	300(L) x 131(W) x 55(H) mm
Power Consumption	182W Typical Board Power
Recommended PSU	Minimum 450 Watt Power Supply
Power Connector	1x 8-pin Power Connector
Operating System	Linux®, Windows® 10 and Windows® 11 (64-bit required)
System Requirements	PCI Express® based PC with one X16 lane graphics slot available Minimum 8GB system memory (16GB recommended)
Special Features	AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 AMD Radeon™ Anti-Lag 2 AV1 Encode/Decode Microsoft® DirectX® 12 Ultimate AMD Freesync™ TriXX Boost External RGB LED MB Sync ARGB Light Bar Fan Quick Connect Premium 9-Phase Digital Power Design Honeywell PTM7950 TIM Metal Backplate FrameDefense Tri-X Cooling Technology
Accessories Bundled	L-Shape Support Bracket 3pin 5V ARGB Cable
