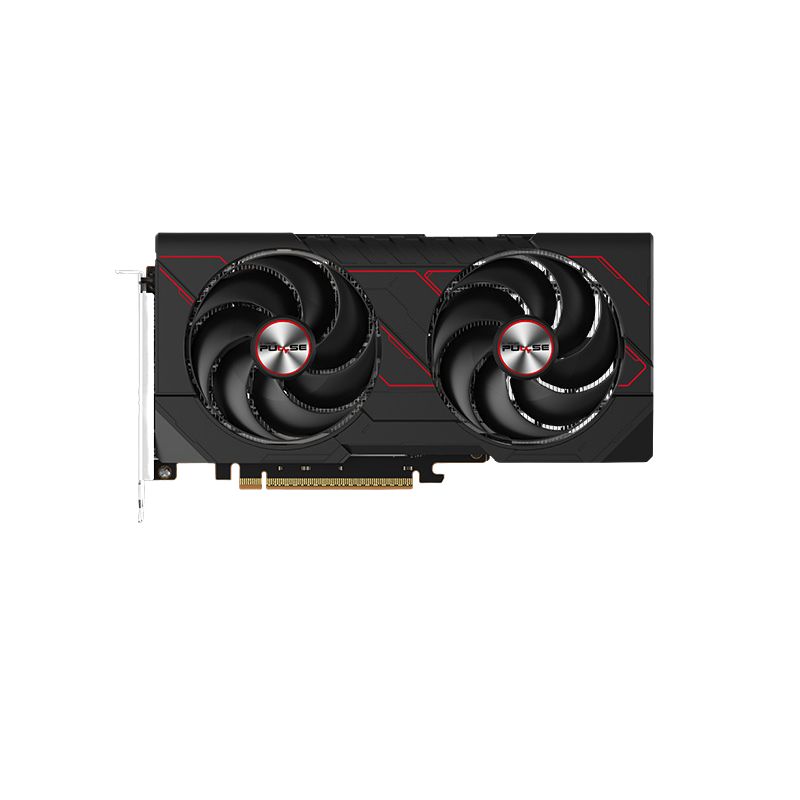

Sapphire AMD Radeon RX 9070 Pulse OC 16GB GDDR6
849,00 €
SKU: 005-6823
Categories: AMD Graphics Cards, Graphics Cards (GPUs)
Brand: Sapphire
Description
| Category | Specification |
|---|---|
| GPU | AMD Radeon™ RX 9070 Graphics Card |
| Architecture | AMD RDNA™ 4 |
| Stream Processors | 3584 |
| Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 56 |
| AI Accelerators | 112 |
| Engine Clock | Game Clock: up to 2070 MHz Boost Clock: up to 2520 MHz |
| Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps Effective |
| Memory Interface | 256-bit |
| Interface | PCI-Express 5.0 x16 |
| Outputs | 2 x HDMI® 2 x DisplayPort™ 2.1a |
| Maximum Displays | 4 |
| Maximum Resolution | HDMI®: 7680×4320 DisplayPort™: 7680×4320 |
| DirectX® Support | 12 Ultimate |
| OpenGL® Support | 4.6 |
| Cooling | Dual-X Cooling, AeroCurve Fan Blade, Two-Ball Bearing Fans |
| Slot | 2.5 Slot, ATX |
| Board Dimensions | 280(L) × 120.25(W) × 51.5(H) mm |
| Recommended PSU | 650W |
| Power Connectors | 2 x 8-pin PCI Express |
| Power Consumption | 220W Typical Board Power |
| Supported OS | Linux®, Windows® 10 & 11 (64-bit) |
| Special Features | AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4, AMD Radiance Display™ Engine, AMD Fluid Motion Frames 2, AMD Anti-Lag 2, AV1 Encode/Decode, AMD Freesync™, AMD Infinity Cache, Sapphire Dual-X Cooling, Honeywell PTM7950 TIM, FrameDefense, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, Intelligent Fan Control, TriXX Supported, TriXX Boost |
