TECH SPECS

• Dimensions: 150 x 86 x 150 mm (W x H x D)
• Color white

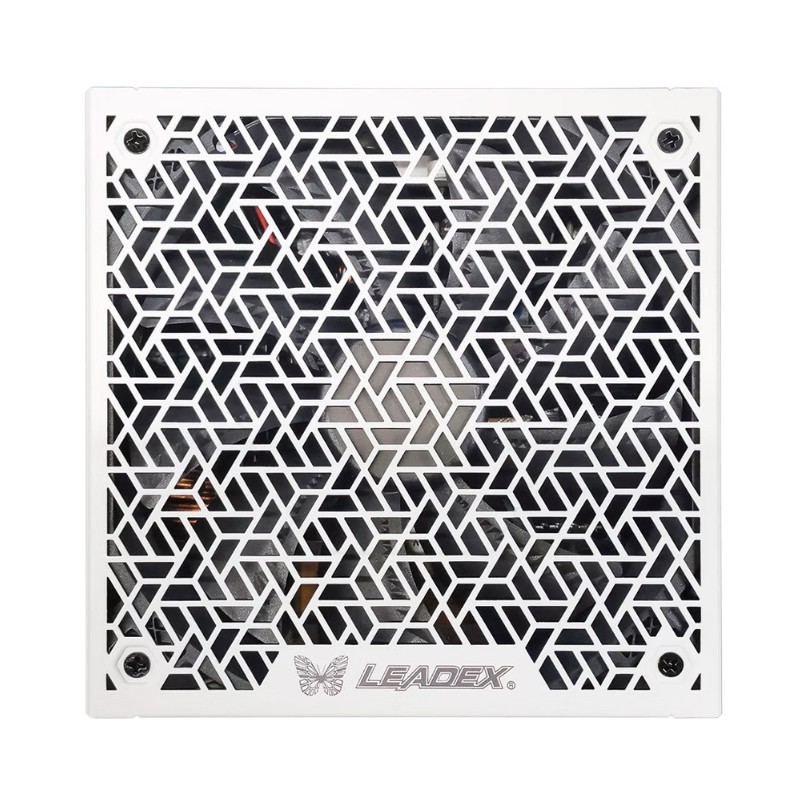

• Fan: 140 mm (semi-passive mode can be switched on)
• Standard: ATX 3.0
• Efficiency: 80 PLUS Gold Certificate (90% at 20% load, 92% at 50% load, 89% load)
• Active PFC
• Form factor: ATX PS/2
• Power: 850 W
  +3.3V: 20 A
  +5V: 20 A
  +3.3V & +5V: 100 W
  +12V: 70.8 A / 849.6 W
  -12V: 0.5 A / 6 W
  +5Vsb : 3A / 15W

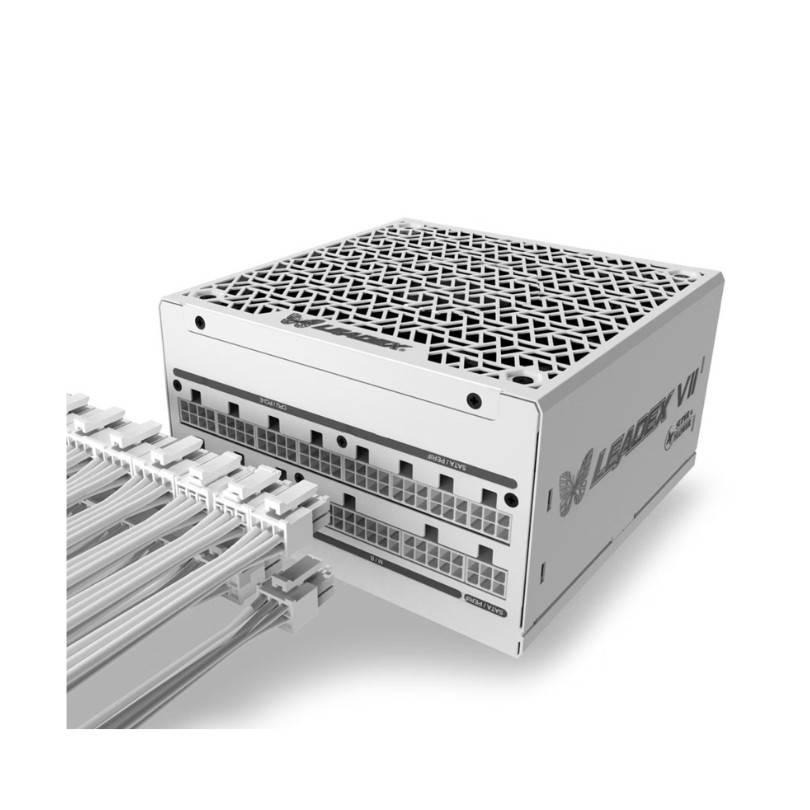

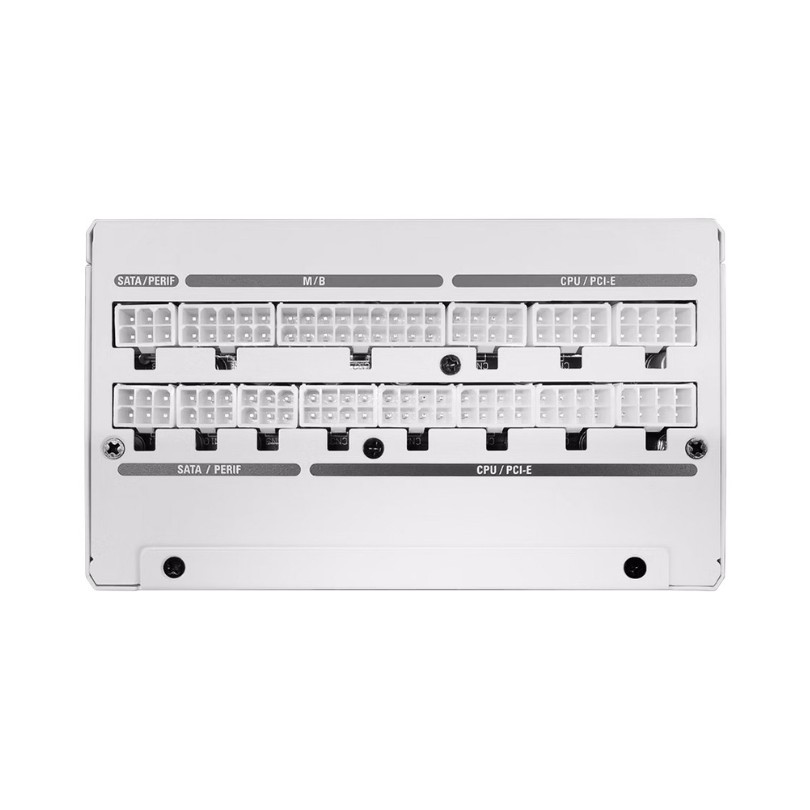

• Connectors (removable):
  1x 20+4-pin ATX
  8x 6+2-pin EPS12V/ATX12V / PCIe
  4x 6-pin peripherals
• Protection circuits:
  OVP (over- and under-voltage protection)
  UVP (under-voltage protection)
  SCP (short circuit)
  OPP (overload)
  OTP (over-temperature protection)
  OCP (over-current on the rails +12, +3.3 and +5 volts)
• Scope of delivery:
  1x 20+4-pin (600 mm)
  2x 4+4-pin ATX 12V (two connections, 700 mm)
  1x 12+4-pin 12VHPWR to 2x 6+2-pin PCIe (650 mm)
  3x 6+2 Pin PCIe (one connector, 700 mm)
  3x SATA (four connectors, straight, 550+130+130+130 mm)
  1x Molex (four connectors, 550+150+150+150 mm)
