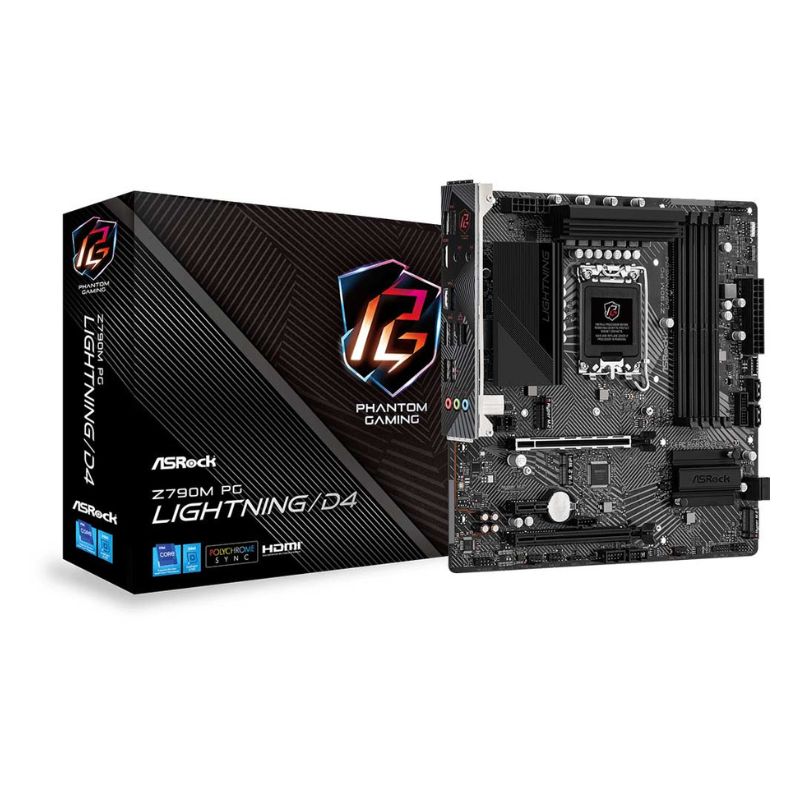

ASRock Z790M PG Lightning DDR4
215,00 €
SKU: 002-4665
Categories: Intel Motherboards, Motherboards
Brand: ASRock
Description
ASRock Z790 PG Lightning D4 Motherboard Specifications
| Model | |
|---|---|
| ASRock Z790 | |
| Chipset | |
| Intel® Z790 Chipset | |
| CPU | |
| – Intel® LGA1700 Socket for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors – Supports Intel® Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT) |
|
| Memory | |
| – **Dual Channel DDR4 Memory** (4 x DIMM slots, max 128GB) – Supports up to **5333+(OC) MHz** – Intel® Extreme Memory Profile (XMP) 2.0 – Supports ECC UDIMM memory (operates in non-ECC mode) |
|
| Graphics | |
| – **Intel® Xe Graphics Architecture** (Gen 12) – 1 x eDP 1.4 (Full HD 60Hz) – 1 x HDMI 2.1 (4K 60Hz) |
|
| Expansion Slots | |
| – **PCIe 5.0 x16 slot** (From CPU, for graphics cards) – **PCIe 4.0 x16 slot** (Supports x4 mode, from chipset) – **3 x PCIe 3.0 x1 slots** – **1 x M.2 (Key E) for WiFi/BT module** |
|
| Storage | |
| – **M.2 Slots:** – 4 x Hyper M.2 PCIe 4.0 x4 (up to 64Gbps) – 1 x M.2 (Supports SATA3 6Gb/s & PCIe Gen4x4 mode) – **4 x SATA 6Gb/s ports** – Supports **Intel® Volume Management Device (VMD)** |
|
| RAID Support | |
| Supports RAID 0, 1, 5, 10 for SATA & M.2 NVMe storage devices | |
| LAN & Connectivity | |
| – **2.5G LAN (Realtek Dragon RTL8125BG)** – **Supports Phantom Gaming LAN Software** (Optimized for gaming, streaming, and browsing) |
|
| USB Ports | |
| – **Rear USB:** – 1 x USB 3.2 Gen2x2 Type-C (20Gbps) – 1 x USB 3.2 Gen2 Type-A (10Gbps) – 5 x USB 3.2 Gen1 Type-A (5Gbps) – 1 x USB 2.0 – **Front USB:** |
|
| Audio | |
| – Realtek ALC897 7.1 HD Audio Codec – **Nahimic Audio Support** |
|
| Rear Panel I/O | |
| – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x USB 3.2 Gen2 Type-A Port (10Gbps) – 1 x USB 3.2 Gen2x2 Type-C Port (20Gbps) – 5 x USB 3.2 Gen1 Ports – 1 x USB 2.0 Port – 1 x RJ-45 LAN Port – HD Audio Jacks: Line-in, Front Speaker, Microphone |
|
| Software & UEFI | |
| – **ASRock EZ Mode UEFI BIOS** – **ASRock Auto Driver Installer** – **ASRock Phantom Gaming LAN Software** – **ASRock Polychrome SYNC** (RGB lighting control) |
|
| Accessories | |
| – **2 x SATA Data Cables** – **5 x Screws for M.2 Slots** – **1 x Standoff for M.2 Socket** |
|
| Operating System Support | |
| Microsoft Windows® 10 64-bit / 11 64-bit (21H2 or later required) | |
| Form Factor | |
| ATX (12.0-in x 9.6-in / 30.5 cm x 24.4 cm) | |
| Certifications | |
| FCC, CE, ErP/EuP Ready | |
