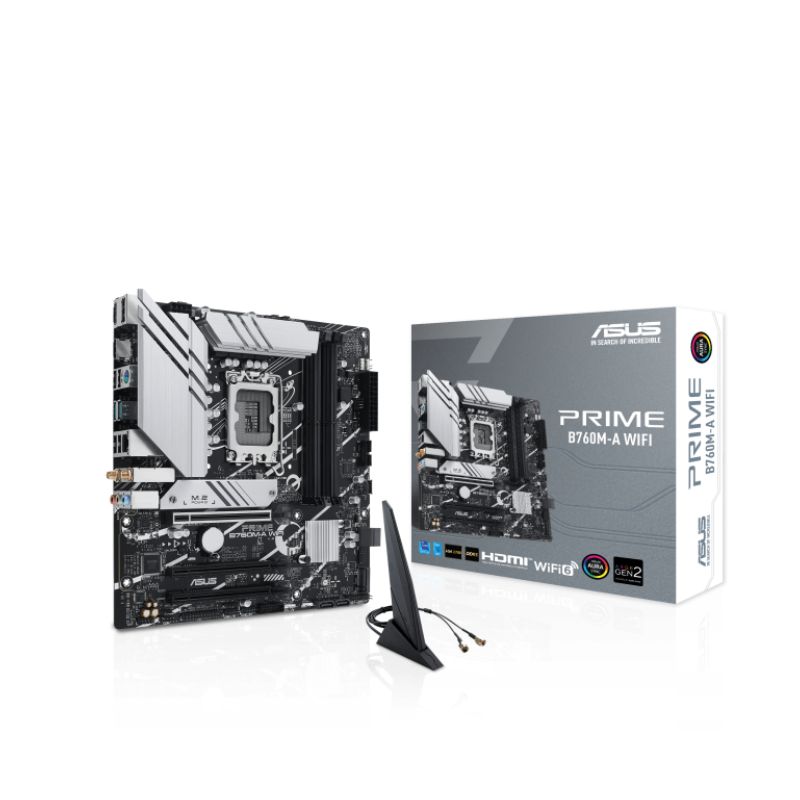

Asus PRIME B760M-A WiFi DDR5
205,00 €
SKU: 002-4791
Categories: Intel Motherboards, Motherboards
Brand: Asus
Description
| Feature | Specification |
|---|---|
| Model | PRIME B760M-A WIFI |
| CPU | Supports Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold, and Celeron® Processors (LGA1700), Intel® Turbo Boost Technology 2.0 & 3.0 |
| Chipset | Intel® B760 |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz, Dual Channel, Supports XMP & OptiMem II |
| Graphics | 1 x DisplayPort 1.4 (4K@60Hz), 2 x HDMI™ 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU) 1 x PCIe 4.0 x16 (supports x4 mode) 1 x PCIe 4.0 x16 (supports x1 mode) (Chipset) |
| Storage | 2 x M.2 slots (PCIe 4.0 x4) 4 x SATA 6Gb/s Supports Intel® Rapid Storage Technology (RAID 0/1/5/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2×2 MU-MIMO, Bluetooth v5.2 |
| USB (Rear) | 2 x USB 3.2 Gen 2 (10Gbps) Type-A 4 x USB 2.0 Type-A |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C 2 x USB 3.2 Gen 1 headers (4 ports) 2 x USB 2.0 headers (4 ports) 1 x USB 2.0 header (1 port) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC, Audio Shielding, Premium capacitors, Dedicated PCB layers |
| Back Panel I/O | 2 x USB 3.2 Gen 2 Type-A 4 x USB 2.0 Type-A 1 x DisplayPort 2 x HDMI™ 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | 1 x 24-pin ATX Power Connector 1 x 8-pin +12V Power Connector 2 x M.2 slots 4 x SATA 6Gb/s 1 x USB 3.2 Gen 1 Type-C 2 x USB 3.2 Gen 1 headers (4 ports) 2 x USB 2.0 headers (4 ports) 1 x USB 2.0 header (1 port) 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Cooling & Fan Headers | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (M.2 heatsink, VRM heatsink) ASUS EZ DIY (ProCool) Aura Sync (Aura RGB header, Addressable Gen 2 headers) |
| Software Features | ASUS Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Power Saving) AI Suite 3 (Digi+ VRM, PC Cleaner) Norton Deluxe (60 Days Free Trial) WinRAR |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x User Guide |
| Form Factor | Micro-ATX, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
