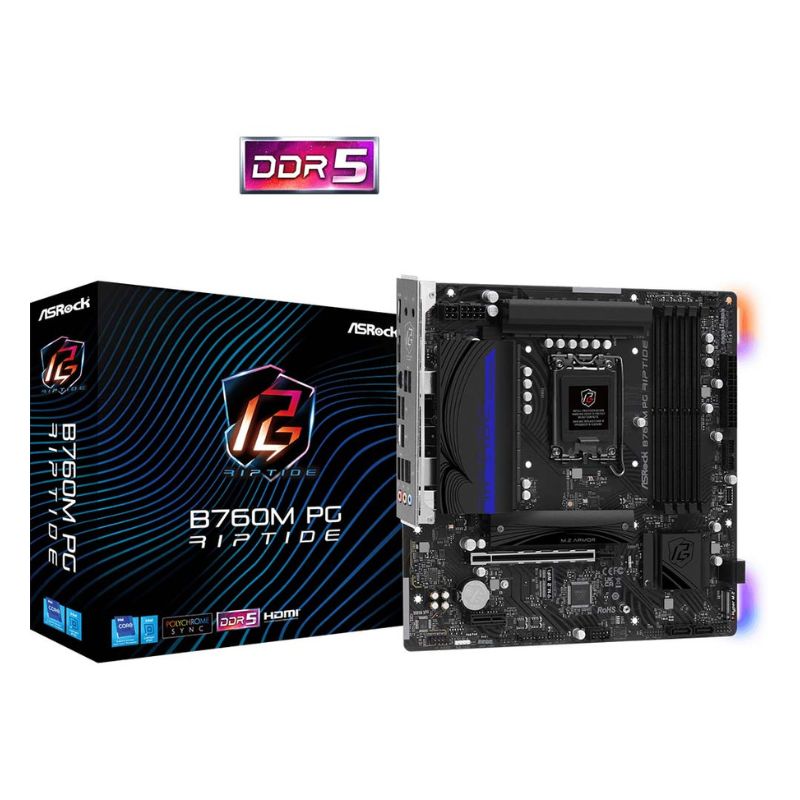

ASRock B760M PG Riptide LGA 1700

Superb Productivity
– Dual Channel DDR5
Rock-Solid Durability
– 14+1+1 Power Phase
– Pre-Installed I/O Shield
Ultrafast Connectivity
– 2.5G LAN EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker

– Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
– Supports Intel^® Hybrid Technology
– Supports Intel^® Turbo Boost Max 3.0 Technology
– Supports Intel^® Thermal Velocity Boost (TVB)
– Supports Intel^® Adaptive Boost Technology (ABT)
– Supports ASRock Hyper BCLK Engine

– Intel^® B760

– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 192GB
– Supports Intel^® Extreme Memory Profile (XMP) 3.0

– 256Mb AMI UEFI Legal BIOS with GUI support

– Intel^® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio

– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control

CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)

CPU:
– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

– 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
– 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)
* All USB ports support ESD Protection

– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

– 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen1 Type-C Port
– 3 x USB 3.2 Gen1 Type-A Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

– 1 x User Manual
– 2 x SATA Data Cables
– 2 x Screws for M.2 Sockets

– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

– Microsoft Windows^® 10 64-bit / 11 64-bit

– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
