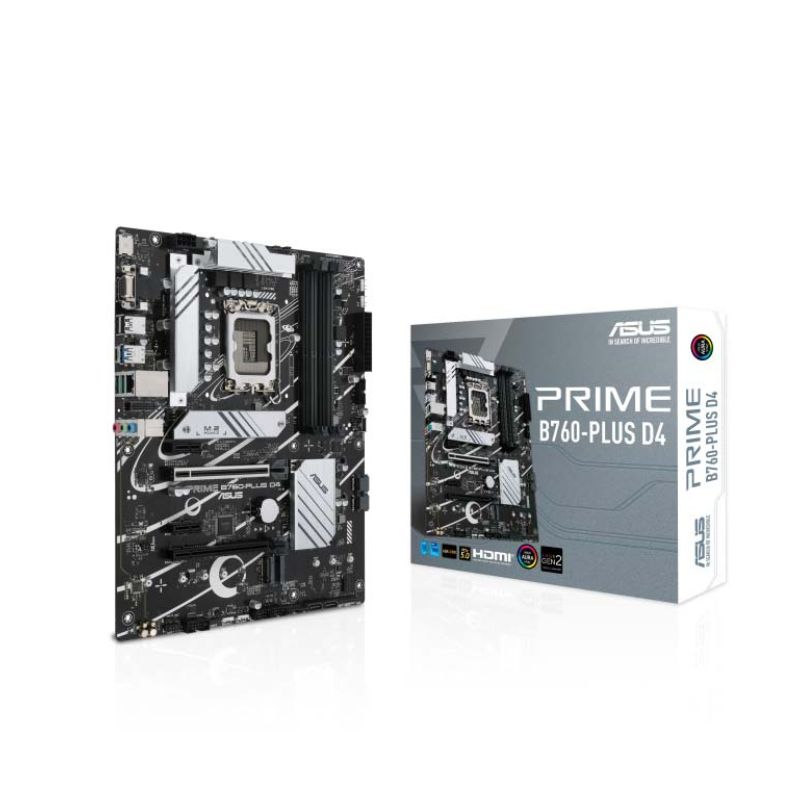

Asus PRIME B760-Plus DDR4
179,00 €
SKU: 002-4722
Categories: Intel Motherboards, Motherboards
Brand: Asus
Description
ASUS PRIME B760-PLUS D4 Motherboard Specifications
| Model | |
|---|---|
| PRIME B760-PLUS D4 | |
| CPU | |
| – Intel® LGA1700 socket for 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors – Supports Intel® Turbo Boost Technology 2.0 & Intel® Turbo Boost Max Technology 3.0 |
|
| Chipset | |
| Intel® B760 Chipset | |
| Memory | |
| – 4 x DIMM slots, Max 128GB DDR4 Non-ECC, Un-buffered Memory – Dual Channel Memory Architecture – Supports Intel® Extreme Memory Profile (XMP), OptiMem – Memory speeds up to 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) MHz |
|
| Graphics | |
| – 1 x DisplayPort 1.4 (Supports max. 4K@60Hz) – 1 x HDMI 2.1 (Supports max. 4K@60Hz) – 1 x VGA Port |
|
| Expansion Slots | |
| – 1 x PCIe 5.0 x16 slot (CPU) – 1 x PCIe 4.0 x16 slot (supports x4 mode, Chipset) – 2 x PCIe 3.0 x1 slots |
|
| Storage | |
| – 3 x M.2 slots (PCIe 4.0 & 3.0 support) – 4 x SATA 6Gb/s ports (RAID 0/1/5/10 support) |
|
| Ethernet | |
| – 1 x Realtek 2.5Gb Ethernet | |
| Wireless & Bluetooth | |
| Vertical M.2 slot (Key E, CNVi & PCIe) for Wi-Fi module (sold separately) | |
| USB | |
| Rear Panel (6 ports): – 1 x USB 3.2 Gen 2×2 Type-C® – 2 x USB 3.2 Gen 2 Type-A – 1 x USB 3.2 Gen 1 Type-A – 2 x USB 2.0 Type-A Front Panel (7 ports): |
|
| Audio | |
| – Realtek 7.1 Surround Sound HD Audio CODEC – Premium audio capacitors, Dedicated audio PCB layers, Audio shielding |
|
| Back Panel I/O | |
| – 1 x USB 3.2 Gen 2×2 Type-C® – 2 x USB 3.2 Gen 2 Type-A – 1 x USB 3.2 Gen 1 Type-A – 2 x USB 2.0 Type-A – 1 x DisplayPort, 1 x HDMI, 1 x VGA – 1 x Vertical M.2 slot (Key E) – 1 x Realtek 2.5Gb Ethernet – 3 x Audio jacks |
|
| Internal I/O Connectors | |
| – 1 x 24-pin Main Power, 1 x 8-pin +12V Power – 3 x 4-pin Chassis Fan headers, 1 x CPU Fan, 1 x AIO Pump Fan – 3 x Addressable Gen 2 headers, 1 x Aura RGB header – 3 x M.2 slots, 4 x SATA 6Gb/s – 1 x Thunderbolt™ (USB4®) header, 1 x SPI TPM header |
|
| Special Features | |
| – ASUS 5X Protection III (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage Protection, SafeSlot Core+) – ASUS EZ DIY (ProCool, Pre-mounted I/O shield) – ASUS Q-Design (M.2 Q-Latch, Q-LED Core, Q-Slot, Q-DIMM) |
|
| Software Features | |
| – Armoury Crate (AURA Creator, AURA Sync, Fan Xpert 2+, Power Saving) – Norton 360 Deluxe (60 Days Trial), WinRAR |
|
| BIOS | |
| 128Mb UEFI BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3 | |
| Operating System | |
| Windows® 11 64-bit, Windows® 10 64-bit | |
| Form Factor | |
| ATX (30.5cm x 24.4cm) | |
