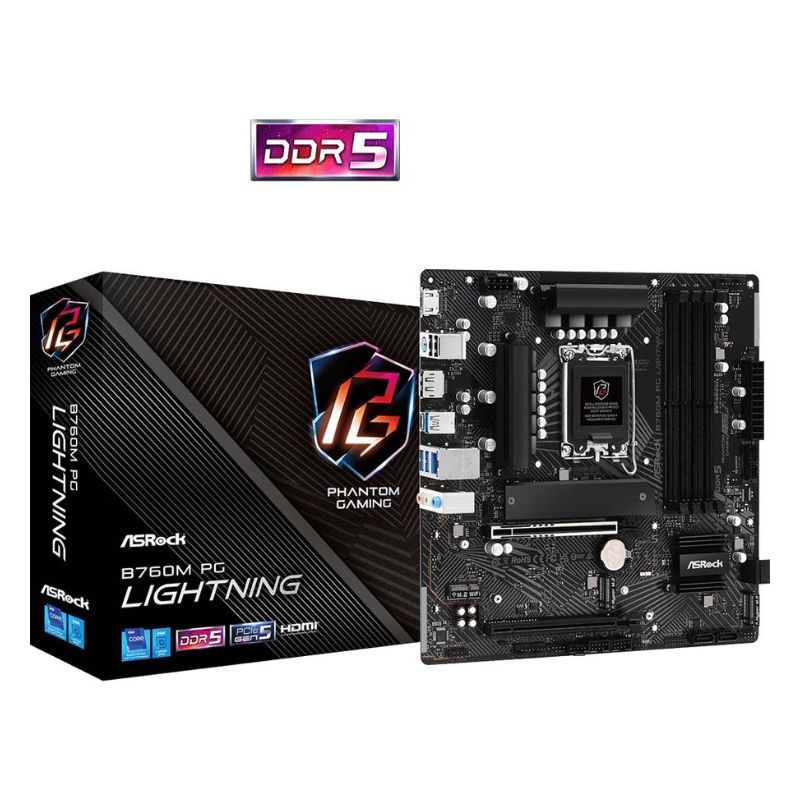

ASRock B760M PG Lightning LGA 1700

B760M-PG-Lightning(L1)
Roll over image to zoom in
Click to open expanded view

144,00 €

In stock

Shipping Cyprus
Estimated Delivery: 5-10 Working Days
SKU: 002-1025 Categories: ,
  • Unique Feature
    Superb Productivity
    – PCIe Gen5 (Graphics)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
    Ultrafast Connectivity
    – 2.5G LAN EZ Update
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker
  • CPU
    Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
    Supports Intel® Hybrid Technology
    Supports Intel® Turbo Boost Max 3.0 Technology
    Supports Intel® Thermal Velocity Boost (TVB)
    Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset
    Intel® B760
  • Memory
    Dual Channel DDR5 Memory Technology
    4 x DDR5 DIMM Slots
    Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
    Max. capacity of system memory: 192GB
    Supports Intel® Extreme Memory Profile (XMP) 3.0

    *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
    1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
    2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
    2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

  • BIOS
    128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    Intel® Xe Graphics Architecture (Gen 12)
    1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  • Audio
    7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Nahimic Audio
  • LAN
    2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    Dragon RTL8125BG
    Supports Phantom Gaming LAN Software
    Smart Auto Adjust Bandwidth Control
    Visual User Friendly UI
    Visual Network Usage Statistics
    Optimized Default Setting for Game, Browser, and Streaming Modes
    User Customized Priority Control

  • Slots
    CPU:
    1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
    1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

    Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks

  • Storage
    CPU:
    1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    4 x SATA3 6.0 Gb/s Connectors

    *Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks

  • RAID
    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    1 x USB 3.2 Gen1 Type-C (Rear)
    5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    6 x USB 2.0 (2 Rear, 4 Front)

    *All USB ports support ESD Protection

  • Connector
    1 x SPI TPM Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)*
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    1 x Front Panel Audio Connector
    1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    *CPU_FAN1 supports the fan power up to 1A (12W).
    **CPU_FAN2/WP supports the fan power up to 2A (24W).
    ***CHA_FAN1~4/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O
    2 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen1 Type-C Port
    3 x USB 3.2 Gen1 Type-A Ports
    2 x USB 2.0 Ports
    1 x RJ-45 LAN Port
    HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
  • Software
    ASRock Motherboard Utility (Phantom Gaming Tuning)
    ASRock Phantom Gaming LAN Software*
    UEFI
    ASRock EZ Mode
    ASRock Full HD UEFI
    ASRock My Favorites in UEFI
    ASRock Auto Driver Installer
    ASRock Instant Flash
    ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Accessories
    1 x User Manual
    1 x I/O Shield
    2 x SATA Data Cables
    4 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
  • Form Factor
    Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • OS
    Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications
    FCC, CE
    ErP/EuP ready (ErP/EuP ready power supply is required)

Additional information

Motherboard Type

LGA 1700 DDR5
