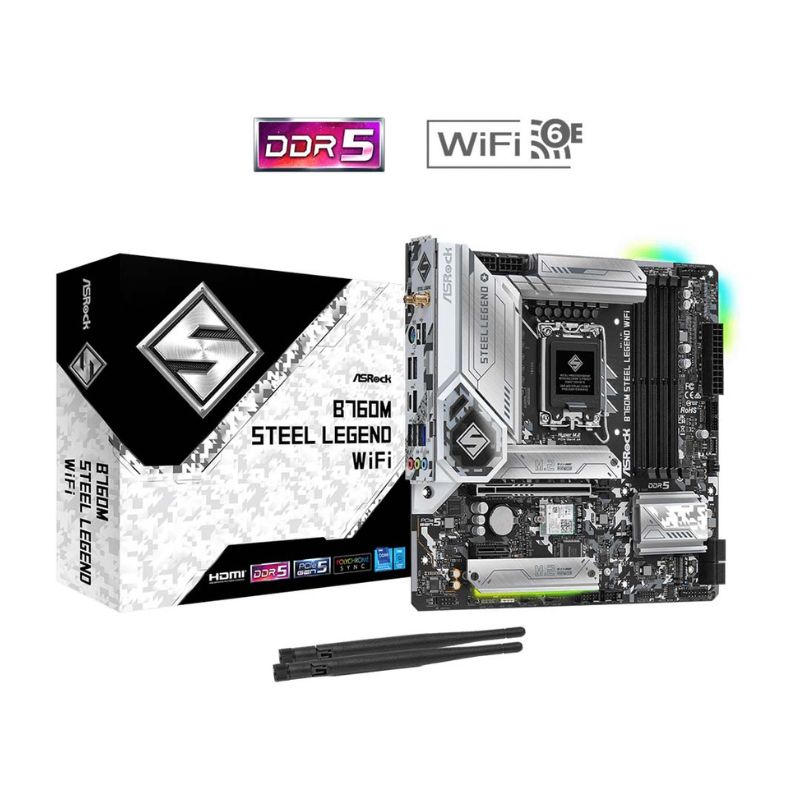

ASRock B760M Steel Legend WiFi DDR5
209,00 €
SKU: 002-4710
Categories: Motherboards, Intel Motherboards
Description
| Model | ASRock B760M Motherboard |
|---|---|
| Chipset | Intel® B760 |
| CPU | Socket: LGA1700 Supported Processors: Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® Processors Features: Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT) |
| Memory | Slots: 4 x DDR5 DIMM (Max 256GB) Speeds: Up to DDR5 7200+(OC) Features: Dual-Channel, Intel® XMP 3.0, Non-ECC, Unbuffered |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Onboard Graphics | GPU: Intel® Xe Graphics Architecture (Gen 12) HDMI™: 1 x HDMI™ 2.1 (4K@60Hz, HDCP 2.3) DisplayPort: 1 x DP 1.4 (8K@60Hz, 5K@120Hz, HDCP 2.3) eDP: 1 x eDP 1.4 (Full HD@60Hz) *Available only on processors featuring integrated graphics. |
| Audio | Codec: Realtek ALC897, 7.1-Channel HD Audio, Nahimic Audio |
| LAN | Realtek® Dragon RTL8125BG 2.5Gb Ethernet Features: Smart Auto Adjust Bandwidth, Visual Network Usage Statistics, User Customizable Priority Control |
| Wireless | Wi-Fi 6E (802.11ax) with Dual-Band 2×2 MIMO Bluetooth 5.3 |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (x16 mode) Chipset: 1 x PCIe 4.0 x1 Other: 1 x M.2 (Key E) for Wi-Fi/BT PCIe Module |
| Storage | CPU: 1 x Hyper M.2 (PCIe 4.0 x4, 2260/2280) Chipset: 2 x Hyper M.2 (PCIe 4.0 x4, 2260/2280) SATA: 4 x SATA 6Gb/s RAID: Supports RAID 0, 1, 5, 10 (SATA & NVMe) |
| USB | Rear Panel: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Internal: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 Header (2 Ports), 2 x USB 2.0 Headers (4 Ports) |
| Internal I/O | Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU/Water Pump, 3 x 4-pin Chassis/Water Pump Fan Power: 1 x 24-pin ATX, 2 x 8-pin 12V RGB: 1 x RGB Header (12V), 3 x Addressable LED Headers (5V) Storage: 2 x M.2 Slots, 4 x SATA 6Gb/s Other: 1 x eDP Signal Connector, 1 x SPI TPM Header, 1 x Chassis Intrusion & Speaker Header, 1 x Front Panel Audio Header, 1 x Clear CMOS Header |
| Rear Panel I/O | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI™ 2.1 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A (10Gbps) 1 x USB 3.2 Gen2 Type-C (10Gbps) 4 x USB 3.2 Gen1 Type-A 2 x USB 2.0 1 x RJ-45 2.5G LAN Port HD Audio Jacks (Line-in, Front Speaker, Microphone) |
| Software & UEFI | Software: ASRock Motherboard Utility (A-Tuning), Dragon 2.5G LAN Software, ASRock Polychrome SYNC UEFI: ASRock EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash, Easy RAID Installer |
| Accessories | 1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 3 x Screws & Standoffs for M.2 Sockets |
| Special Features | Productivity: PCIe Gen5 Graphics, Dual-Channel DDR5 Durability: 12+1+1 Power Phase, 50A Dr.MOS, Nichicon 12K Black Caps (Japan-made) Connectivity: 2.5G LAN, Wi-Fi 6E EZ Update: ASRock Auto Driver Installer EZ Troubleshooter: ASRock Post Status Checker |
| Form Factor | micro-ATX (24.4cm x 24.4cm), 2oz Copper PCB |
| Operating System | Windows® 10 64-bit, Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
