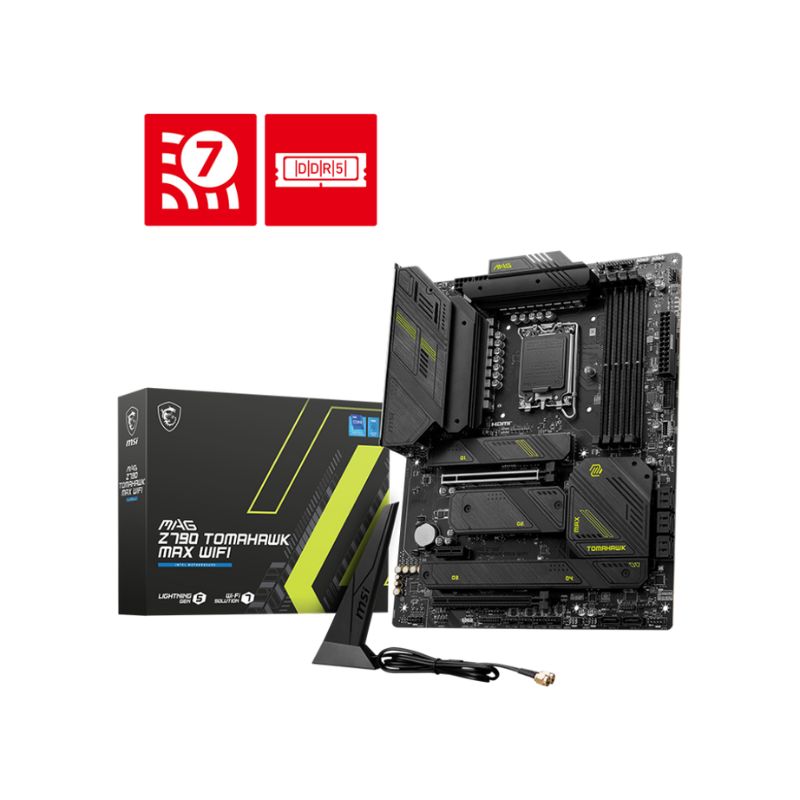

MSI MAG Z790 Tomahawk MAX WIFi DDR5
345,00 €
SKU: 002-4932
Categories: Intel Motherboards, Motherboards
Brand: MSI
Description
| Chipset | Intel® Z790 |
|---|---|
| CPU | Socket: LGA1700 Supported Processors: Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® Processors |
| Memory | Slots: 4 x DDR5 UDIMM (Max 256GB) Speeds: Up to DDR5 7800+(OC) Max Overclocking Frequency: • 1DPC 1R: Up to 7800+ MHz • 1DPC 2R: Up to 6600+ MHz • 2DPC 1R: Up to 6400+ MHz • 2DPC 2R: Up to 5600+ MHz Features: Dual-Channel Mode, Intel® XMP 3.0, Non-ECC Un-buffered Memory |
| Onboard Graphics | HDMI™: 1 x HDMI™ 2.1 (4K@60Hz) DisplayPort: 1 x DP 1.4 (8K@60Hz) *Available only on processors featuring integrated graphics. |
| Expansion Slots | 2 x PCI-E x16, 1 x PCI-E x1 PCI-E 5.0: x16 (From CPU) PCI-E 3.0: x1 (From Chipset) PCI-E 4.0: x4 (From Chipset) *PCI_E1 slot will be Gen5x8 when M.2 SSD is installed in the M2_1 slot. |
| Audio | Codec: Realtek® ALC4080 Channels: 7.1-Channel USB High Performance Audio Features: S/PDIF Output, 32-Bit/384 kHz Playback on Front Panel |
| Storage | M.2: 4 x M.2 (PCIe 5.0 & 4.0 x4 / SATA support) M.2_1: PCIe 5.0 x4 (From CPU), Supports 22110/2280/2260 devices M.2_2: PCIe 4.0 x4 (From Chipset), Supports 2280/2260 devices M.2_3: PCIe 4.0 x4 / SATA (From Chipset), Supports 2280/2260/2242 devices M.2_4: PCIe 4.0 x4 (From Chipset), Supports 2280/2260/2242 devices SATA: 8 x SATA 6Gb/s *SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
| RAID | Supports RAID 0, 1, 5, 10 for SATA & M.2 NVMe Storage Devices *SATA_A1_A2 do not support RAID function. |
| USB | Back Panel: 4 x USB 5Gbps Type-A, 4 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x USB 20Gbps Type-C Internal: 4 x USB 2.0, 2 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C |
| LAN | Intel® 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Wi-Fi: Wi-Fi 7 (2.4GHz / 5GHz / 6GHz, 320MHz, up to 5.8Gbps) Bluetooth: 5.4, MLO, 4KQAM |
| Internal I/O | 1 x 24-pin ATX Power, 2 x 8-pin CPU Power, 1 x CPU Fan, 1 x Pump Fan, 6 x System Fan 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD) 1 x Tuning Controller (JDASH), 3 x Addressable V2 RGB LED (JARGB_V2), 1 x RGB LED (JRGB) 1 x TPM 2.0 Header, 1 x USB4 Card Connector (JTBT_U4_1, Supports RTD3) |
| LED Features | 4 x EZ Debug LED |
| Back Panel Ports | Video: 1 x HDMI™ 2.1, 1 x DisplayPort USB: 4 x USB 5Gbps Type-A, 4 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x USB 20Gbps Type-C Networking: 1 x 2.5G LAN, Wi-Fi / Bluetooth Antenna Audio: HD Audio Connectors, Optical S/PDIF Output Additional Features: Clear CMOS, Flash BIOS Button |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX (243.84mm x 304.8mm) |
