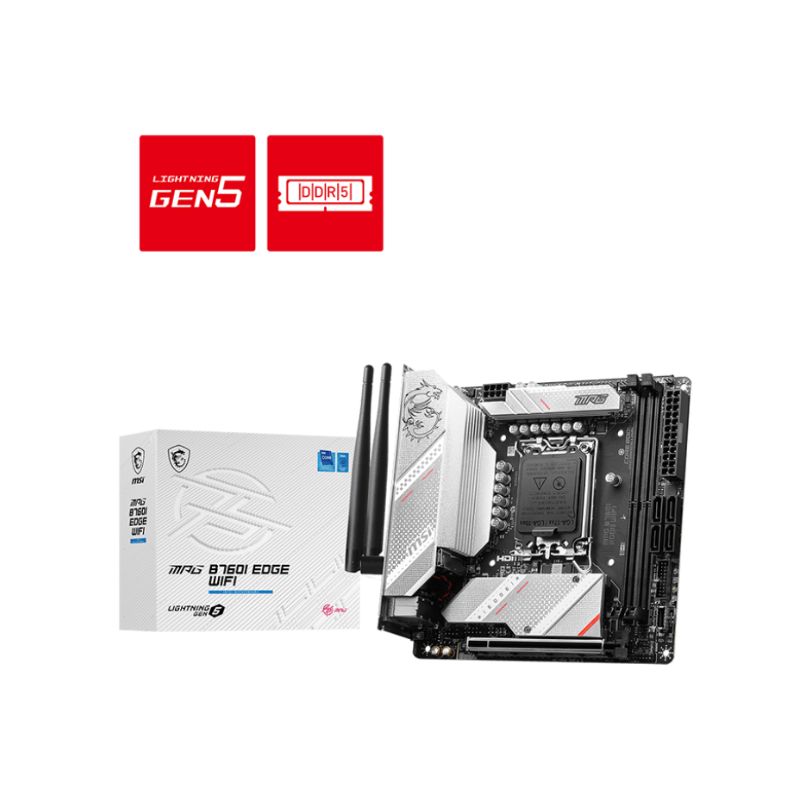

MSI MPG B760I EDGE WiFi DDR5
249,00 €
SKU: 002-4855
Categories: Intel Motherboards, Motherboards
Brand: MSI
Description
| Chipset | Intel® B760 |
|---|---|
| CPU | Socket: LGA1700 Supported Processors: Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, and Celeron® Processors |
| Memory | Slots: 2 x DDR5 (Max 128GB) Speeds: Up to DDR5 7200+(OC) Max Overclocking Frequency: • 1DPC 1R: Up to 7200+ MHz • 1DPC 2R: Up to 6600+ MHz Features: Dual-Channel Mode, Intel® Extreme Memory Profile (XMP), Non-ECC Un-buffered Memory |
| Onboard Graphics | HDMI™: 1 x HDMI™ 2.1 with HDR (4K@60Hz) DisplayPort: 1 x DP 1.4 (8K@60Hz) *Available only on processors featuring integrated graphics. |
| Expansion Slots | 1 x PCI-E x16 PCI-E 5.0: x16 (From CPU) |
| Audio | Codec: Realtek® ALC897 Channels: 7.1-Channel High Definition Audio |
| Storage | M.2: 2 x M.2 (PCIe 4.0 x4 / SATA support) M.2_1: PCIe 4.0 x4 (From CPU), Supports 2280 devices M.2_2: PCIe 4.0 x4 / SATA (From Chipset), Supports 2280 devices SATA: 4 x SATA 6Gb/s |
| RAID | Supports RAID 0, 1, 5, 10 for SATA storage devices |
| USB | Back Panel: 2 x USB 2.0, 4 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C Internal: 2 x USB 2.0, 2 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless LAN & Bluetooth | Wi-Fi: Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz, up to 2.4Gbps) Bluetooth: 5.3, FIPS, FISMA |
| Internal I/O | 1 x 24-pin ATX Power, 1 x 8-pin CPU Power, 1 x CPU Fan, 1 x Pump Fan, 1 x System Fan 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD) 1 x Addressable V2 RGB LED (JARGB_V2), 1 x RGB LED (JRGB), 1 x TPM 2.0 Header 2 x USB 2.0, 2 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-C |
| LED Features | 4 x EZ Debug LED |
| Back Panel Ports | USB 5Gbps, DisplayPort, USB 10Gbps, 2.5G LAN, Audio Connectors, HDMI™, USB 10Gbps Type-C, USB 2.0, Wi-Fi / Bluetooth |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | Mini-ITX (170mm x 170mm) |
