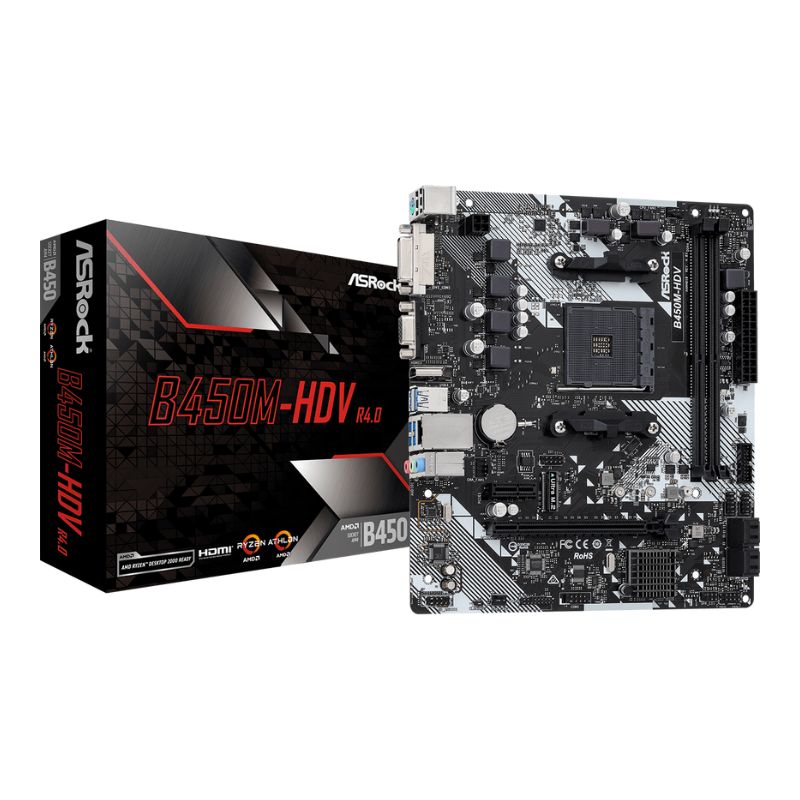

Asrock B450M-HDV R4.0 AM4
95,00 €
SKU: 002-3770
Categories: AMD Motherboards, Motherboards
Brand: ASRock
Description
| Model | ASRock B450 Micro ATX |
|---|---|
| Chipset | AMD Promontory B450 |
| CPU Support | AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors Supports CPU up to 105W |
| Memory | Type: Dual Channel DDR4 Memory Technology Slots: 2 x DDR4 DIMM Slots Max Capacity: 64GB Speeds: Up to DDR4 3200+(OC) (varies by CPU) Features: ECC & Non-ECC, Un-buffered, XMP Support |
| Graphics | Integrated: AMD Radeon™ Vega Series Graphics (in Ryzen Series APU) Outputs: D-Sub, DVI-D, HDMI (up to 4K @ 30Hz) Multi-Monitor: Supported (Triple Monitor Support) |
| Audio | Codec: Realtek ALC887/897, 7.1-Channel HD Audio Features: Surge Protection |
| LAN | Controller: Realtek RTL8111H, Gigabit LAN Speed: 10/100/1000 Mb/s Features: Wake-On-LAN, Lightning/ESD Protection, PXE |
| Expansion Slots | PCIe 3.0 x16 Slot: 1 (x16 mode for Ryzen CPUs, x8 mode for APUs, x4 mode for Athlon CPUs) PCIe 2.0 x1 Slot: 1 |
| Storage | SATA: 4 x SATA3 6.0 Gb/s (RAID 0, 1, 10 Support) M.2: 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3, NVMe Boot Support) |
| RAID Support | RAID 0, RAID 1, RAID 10 (SATA Storage) |
| USB Ports | Rear: 4 x USB 3.1 Gen1 Type-A, 2 x USB 2.0 Front: 2 x USB 3.1 Gen1, 4 x USB 2.0 (via headers) |
| Internal Connectors | Cooling: 1 x CPU Fan (4-pin), 2 x Chassis Fan (1 x 3-pin, 1 x 4-pin) Power: 1 x 24-pin ATX, 1 x 4-pin 12V Misc: TPM Header, COM Port, Speaker Header, Front Audio, RGB LED Header |
| Rear I/O Ports | Display: 1 x D-Sub, 1 x DVI-D, 1 x HDMI USB: 4 x USB 3.1 Gen1, 2 x USB 2.0 Networking: 1 x RJ-45 Gigabit LAN Port Audio: 3 x HD Audio Jacks (Line-In, Front Speaker, Mic) Other: 1 x PS/2 Mouse/Keyboard Port |
| BIOS | 128Mb AMI UEFI Legal BIOS Supports UEFI GUI, ACPI 5.1, PnP, Jumperfree, SMBIOS 2.3 |
| Software & UEFI Features | ASRock A-Tuning, XFast LAN, Full HD UEFI, Instant Flash, Easy RAID Installer |
| Form Factor | Micro ATX (9.0-in x 7.9-in, 23.0 cm x 20.1 cm) |
| Operating System Support | Windows® 10 64-bit / Windows® 11 64-bit* |
| Accessories | 2 x SATA Cables, 1 x M.2 Screw, Quick Installation Guide, Support CD, I/O Shield |
| Certifications | FCC, CE, ErP/EuP Ready |
