Description

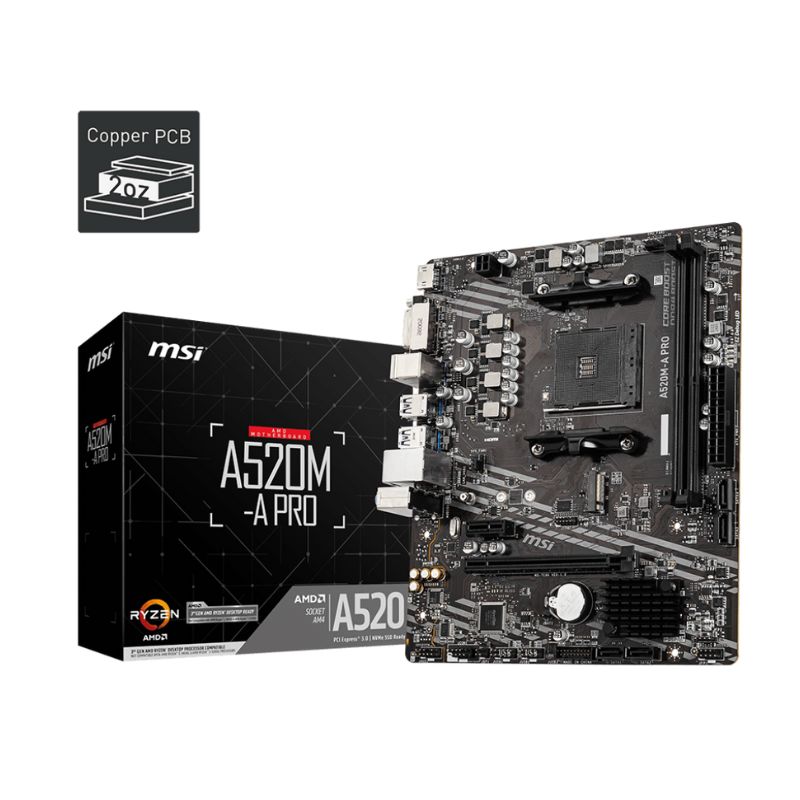

| Model | MSI A520M-A Pro |
|---|---|
| Chipset | AMD A520 |
| CPU Support | AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series Processors |
| Memory | Type: DDR4, Dual Channel Slots: 2 x DDR4 DIMM Slots Max Capacity: 64GB Speeds: Up to DDR4 4600+ MHz (OC) (varies by CPU) Features: Non-ECC, ECC (Non-ECC mode), Un-buffered, A-XMP Support |
| Expansion Slots | PCIe 3.0 x16 Slot: 1 (x16 for Ryzen 5000/5000G/4000G/3000, x8 for 3000G, x4 for Athlon CPUs) PCIe 3.0 x1 Slot: 1 |
| Graphics | Integrated: Available for processors with integrated graphics Outputs: 1 x HDMI™ 2.1 (4K @ 60Hz), 1 x DVI-D (1920×1200 @ 60Hz) Max Shared Memory: 16GB |
| Storage | SATA: 4 x SATA3 6Gb/s (RAID 0, 1, 10 Support) M.2: 1 x M.2 (PCIe 3.0 x4 & SATA, NVMe Boot Support, 2242/2260/2280) |
| RAID Support | RAID 0, RAID 1, RAID 10 (SATA Storage) RAID 0, RAID 1 (M.2 NVMe Storage) |
| USB Ports | Rear: 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front: 2 x USB 3.2 Gen1 (via header), 4 x USB 2.0 (via headers) |
| Audio | Codec: Realtek ALC892/ALC897, 7.1-Channel HD Audio |
| LAN | Controller: Realtek RTL8111H, Gigabit LAN Speed: 10/100/1000 Mb/s |
| Internal Connectors | Cooling: 1 x CPU Fan (4-pin), 1 x System Fan (4-pin) Power: 1 x 24-pin ATX, 1 x 4-pin 12V Misc: TPM Module, Chassis Intrusion, Clear CMOS, System Panel |
| Rear I/O Ports | Display: 1 x HDMI™ 2.1, 1 x DVI-D USB: 4 x USB 3.2 Gen1, 2 x USB 2.0 Networking: 1 x RJ-45 Gigabit LAN Port Audio: 3 x HD Audio Jacks Other: 1 x Keyboard/Mouse PS/2 Port |
| Form Factor | Micro-ATX (9.3 in. x 7.9 in. / 23.6 cm x 20 cm) Mounting Holes: 8 |
| Operating System Support | Windows® 10 64-bit / Windows® 11 64-bit |
