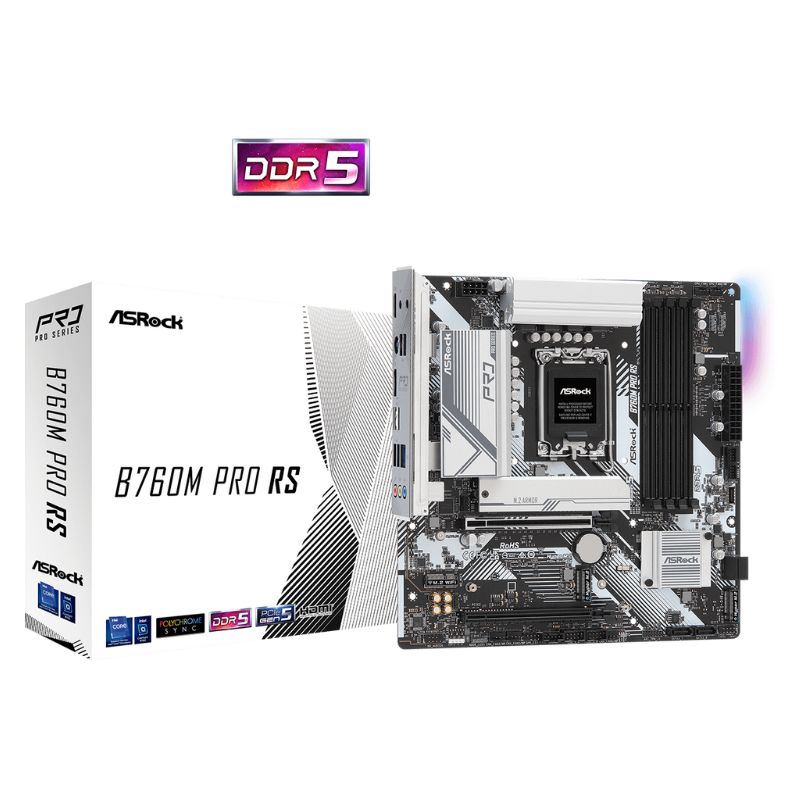

ASRock B760M Pro RS WiFi DDR5
179,00 €
SKU: 002-4850
Categories: Intel Motherboards, Motherboards
Brand: ASRock
Description
ASRock B760M Pro RS Motherboard Specifications
| Unique Features | |
|---|---|
| – PCIe Gen5 (Graphics), Dual Channel DDR5 – 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT – Pre-Installed I/O Shield, 2.5G LAN, ASRock Auto Driver Installer – ASRock Post Status Checker (EZ Troubleshooter) |
|
| CPU | |
| – Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) – Supports Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost Technology |
|
| Chipset | |
| Intel® B760 | |
| Memory | |
| – 4 x DDR5 DIMM Slots, Dual Channel DDR5 Memory – Supports DDR5 up to 7200+(OC), max capacity: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0 |
|
| BIOS | |
| 128Mb AMI UEFI Legal BIOS with GUI support | |
| Graphics | |
| – Intel® Xe Graphics (Gen 12) – 1 x HDMI 2.1 (4K 60Hz, HDCP 2.3) – 1 x DisplayPort 1.4 (8K 60Hz / 5K 120Hz, HDCP 2.3) |
|
| Audio | |
| 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio | |
| LAN | |
| – 2.5 Gigabit LAN (Realtek RTL8125BG) – Supports Dragon 2.5G LAN Software (Auto Adjust Bandwidth, Game/Streaming Optimization) |
|
| Expansion Slots | |
| – CPU: 1 x PCIe 5.0 x16 slot – Chipset: 1 x PCIe 3.0 x16 slot (x4 mode), 1 x M.2 WiFi Slot |
|
| Storage | |
| – 3 x Hyper M.2 Slots (PCIe Gen4x4, 64Gb/s) – 4 x SATA 6Gb/s connectors (Supports RAID 0/1/5/10) |
|
| USB | |
| – Rear Panel: • 1 x USB 3.2 Gen1 Type-C • 3 x USB 3.2 Gen1 Type-A • 2 x USB 2.0 Type-A – Front Panel: |
|
| Internal I/O Connectors | |
| – 1 x 24-pin ATX Power, 1 x 8-pin 12V Power – 1 x CPU Fan Header, 1 x CPU/Water Pump Fan Header – 4 x Chassis/Water Pump Fan Headers – 3 x Addressable LED Headers, 1 x RGB LED Header – 1 x Thunderbolt™ AIC Connector – 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front USB Type-C Header |
|
| Rear Panel I/O | |
| – 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port, 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 – 1 x RJ-45 LAN Port, 3 x HD Audio Jacks |
|
| Software and UEFI | |
| – ASRock A-Tuning Utility, Dragon 2.5G LAN Software, Polychrome SYNC – ASRock EZ Mode, UEFI Full HD GUI, My Favorites, Auto Driver Installer, Instant Flash, Easy RAID Installer |
|
| Accessories | |
| – 1 x User Manual – 2 x SATA Cables, 4 x M.2 Screws, 1 x M.2 Standoff |
|
| Operating System | |
| Windows® 10 64-bit, Windows® 11 64-bit | |
| Form Factor | |
| Micro ATX (24.4cm x 24.4cm) | |
| Certifications | |
| FCC, CE, ErP/EuP Ready | |
