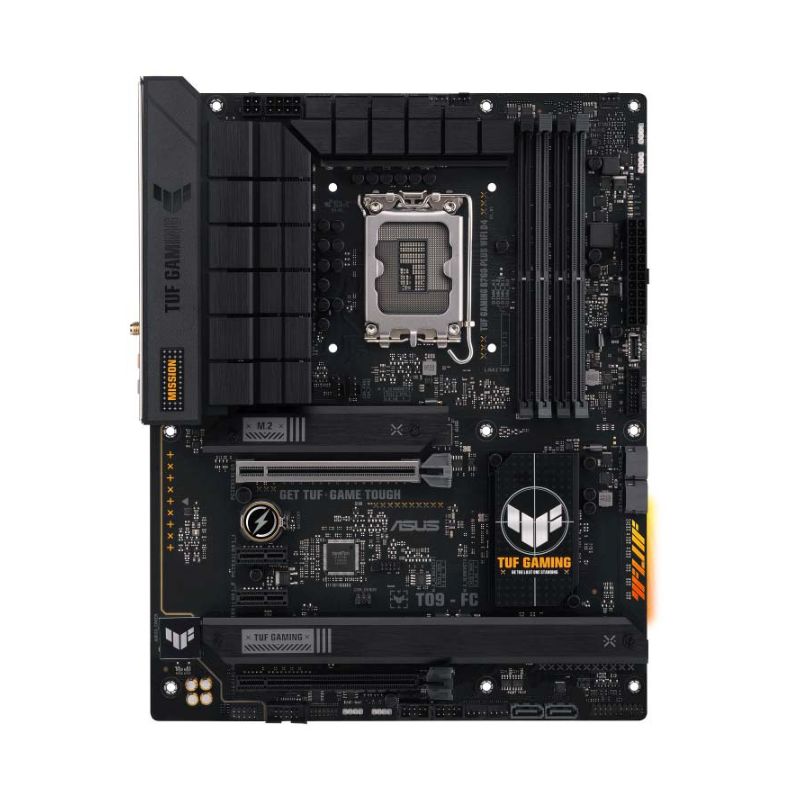

Asus TUF GAMING B760-PLUS WiFi D4 LGA 1700
219,00 €
SKU: 002-4715
Categories: Intel Motherboards, Motherboards
Brand: Asus
Description
| Feature | Specification |
|---|---|
| Model | TUF GAMING B760-PLUS WIFI D4 |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Graphics | 1 x DisplayPort (Max. 4K@60Hz), 1 x HDMI (Max. 4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU) 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (PCIe 4.0 x4) 4 x SATA 6Gb/s |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2 |
| Rear USB Ports | 1 x USB 3.2 Gen 2×2 (Type-C) 1 x USB 3.2 Gen 2 (Type-A) 3 x USB 3.2 Gen 1 (Type-A) 1 x USB 2.0 (Type-A) |
| Front USB Ports | 1 x USB 3.2 Gen 2 (Type-C) 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, Optical S/PDIF out |
| Back Panel I/O | 1 x USB 3.2 Gen 2×2 (Type-C) 1 x USB 3.2 Gen 2 (Type-A) 3 x USB 3.2 Gen 1 (Type-A) 1 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out |
| Internal I/O Connectors | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 3 x M.2 slots 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 2 (Type-C) 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) 3 x Addressable Gen 2 headers 1 x Aura RGB header |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
| Operating System | Windows® 11, Windows® 10 64-bit |
