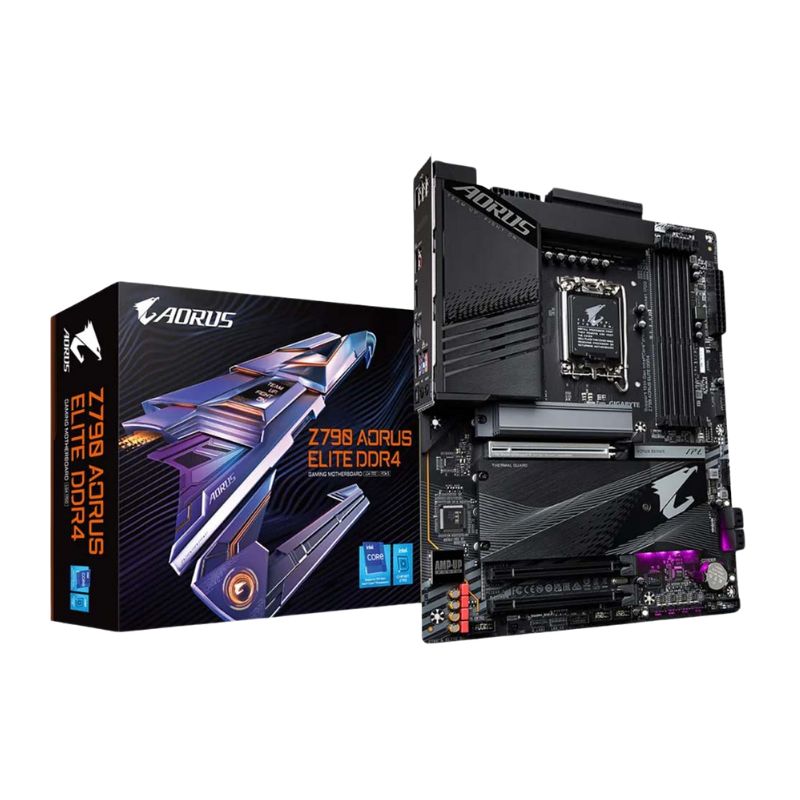

Gigabyte Z790 AORUS ELITE DDR4
265,00 €
SKU: 002-4766
Categories: Intel Motherboards, Motherboards
Brand: Gigabyte
Description
Gigabyte Z790 AORUS ELITE DDR4 Motherboard Specifications
| CPU | |
|---|---|
| – LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors – L3 cache varies with CPU (Refer to CPU Support List for details) |
|
| Chipset | |
| Intel® Z790 Express Chipset | |
| Memory | |
| – 4 x DDR4 DIMM sockets, up to 128GB (32GB per DIMM) – Supports DDR4 5333(O.C.) to 2133 MHz memory modules – Dual-channel memory architecture – Supports ECC and non-ECC Un-buffered DIMM – Supports Intel® Extreme Memory Profile (XMP) |
|
| Onboard Graphics | |
| – Integrated Intel® HD Graphics – 1 x HDMI 2.1 port (4096×2160@60Hz, HDCP 2.3 support) |
|
| Audio | |
| – Realtek® Audio CODEC (High Definition Audio, 7.1 channel) – Supports S/PDIF Out |
|
| LAN | |
| Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) | |
| Expansion Slots | |
| – CPU: 1 x PCIe 5.0 x16 slot (for GPU/NVMe SSD) – Chipset: 1 x PCIe 4.0 x16 slot (x4 mode), 1 x PCIe 3.0 x16 slot (x4 mode) |
|
| Storage | |
| – CPU: 1 x M.2 (PCIe 4.0 x4, type 22110/2280) – Chipset: 3 x M.2 (PCIe 4.0 x4, type 22110/2280, one supports SATA) – 4 x SATA 6Gb/s connectors – Supports RAID 0/1/5/10 for NVMe and SATA devices |
|
| USB | |
| – Rear Panel: • 1 x USB Type-C® (USB 3.2 Gen 2×2) • 2 x USB 3.2 Gen 2 Type-A (red) • 3 x USB 3.2 Gen 1 Type-A • 4 x USB 2.0 – Internal Headers: |
|
| Internal I/O Connectors | |
| – 1 x 24-pin ATX Power, 2 x 8-pin ATX 12V Power – 1 x CPU Fan, 1 x Water Cooling CPU Fan, 3 x System Fans, 1 x Water Cooling Pump Fan – 2 x Addressable LED Strip Headers, 2 x RGB LED Strip Headers – 4 x M.2 connectors, 4 x SATA 6Gb/s connectors – 1 x Front Panel Audio Header, 1 x Front Panel Header – 1 x Trusted Platform Module (TPM) Header – 1 x Reset Button, 1 x Q-Flash Plus Button, 1 x Clear CMOS Button |
|
| Back Panel I/O | |
| – 1 x USB Type-C® (USB 3.2 Gen 2×2) – 2 x USB 3.2 Gen 2 Type-A (red) – 3 x USB 3.2 Gen 1 Type-A – 4 x USB 2.0 – 1 x HDMI 2.0 port – 1 x RJ-45 LAN Port – 1 x Optical S/PDIF Out Connector – 2 x Audio Jacks |
|
| Software and UEFI | |
| – Gigabyte Control Center (GCC) – Q-Flash, Q-Flash Plus, Smart Backup |
|
| Bundled Software | |
| – Norton® Internet Security (OEM version) – LAN bandwidth management software |
|
| Operating System | |
| Windows® 11 64-bit, Windows® 10 64-bit | |
| Form Factor | |
| ATX (30.5cm x 24.4cm) | |
