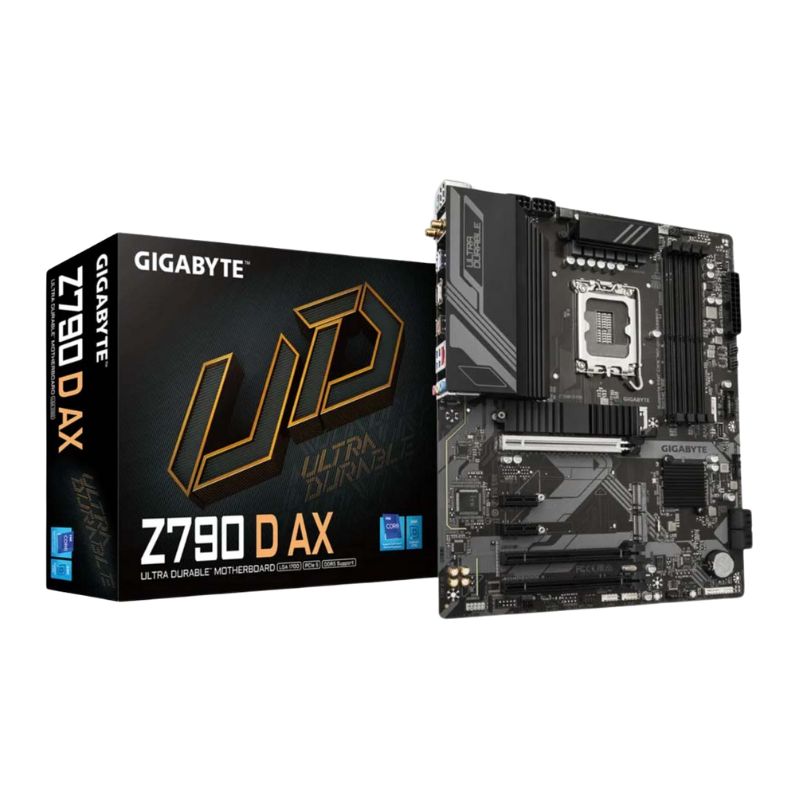

Gigabyte Z790 D AX DDR5

235,00 €

SKU: 002-4978

Categories: Intel Motherboards, Motherboards

Brand: Gigabyte

Description

Feature	Specification
Model	GIGABYTE Z790 ATX Motherboard
CPU	Supports Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold, and Celeron® Processors (LGA1700)
Chipset	Intel® Z790 Express Chipset
Memory	4 x DDR5 DIMM sockets, up to 256GB (64GB per DIMM) Supports DDR5 7600(O.C.) to 4400 MT/s Dual channel architecture Supports ECC & non-ECC Un-buffered DIMM Supports XMP memory modules
Graphics	Integrated Intel® HD Graphics 1 x HDMI™ (4096×2160@60Hz, HDMI™ 2.1, HDCP 2.3) 1 x DisplayPort (4096×2304@60Hz, DisplayPort 1.2, HDCP 2.3)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel support Supports S/PDIF Out
Ethernet	Realtek® 2.5GbE LAN
Wireless & Bluetooth	Intel® Wi-Fi 6E AX211 Supports 2.4/5/6GHz frequency bands Bluetooth 5.3 Supports 11ax 160MHz wireless standard
Expansion Slots	1 x PCIe 5.0 x16 slot (CPU) 1 x PCIe 4.0 x4 slot (Chipset) 1 x PCIe 3.0 x1 slot (Chipset) 2 x PCIe 3.0 x1 slots (Chipset)
Storage	1 x M.2 (PCIe 4.0 x4/x2, 22110/2280) (CPU) 1 x M.2 (PCIe 4.0 x4/x2, 2280) (Chipset) 1 x M.2 (PCIe 4.0 x4/x2, SATA & PCIe) (Chipset) 4 x SATA 6Gb/s Supports RAID 0/1/5/10 for NVMe SSDs & SATA devices
USB (Rear)	1 x USB 3.2 Gen 2 Type-C® 1 x USB 3.2 Gen 2 Type-A (Red) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 Type-A
USB (Front)	1 x USB 3.2 Gen 1 Type-C® 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0/1.1 headers (4 ports)
Internal I/O Connectors	1 x 24-pin ATX Power Connector 2 x 8-pin ATX 12V Power Connectors 1 x CPU Fan Header 1 x CPU Fan/Water Cooling Pump Header 3 x System Fan Headers 1 x System Fan/Water Cooling Pump Header 2 x Addressable LED Strip Headers 3 x M.2 Connectors 4 x SATA 6Gb/s Connectors 1 x Front Panel Header 1 x Front Panel Audio Header 1 x S/PDIF Out Header 1 x USB Type-C Header (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 Header 2 x USB 2.0/1.1 Headers 2 x Thunderbolt™ Add-in Card Connectors 1 x Trusted Platform Module Header 1 x Q-Flash Plus Button 1 x Reset Button 1 x Reset Jumper 1 x Clear CMOS Jumper
Back Panel I/O	1 x PS/2 Keyboard/Mouse Port 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 2 Type-A (Red) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 Type-A 2 x SMA Antenna Connectors (2T2R) 1 x HDMI™ 1 x DisplayPort 1 x RJ-45 Ethernet Port 3 x Audio Jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, Temperature, and Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control
BIOS	1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash & Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM) LAN Bandwidth Management Software
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX, 30.5cm x 24.4cm
