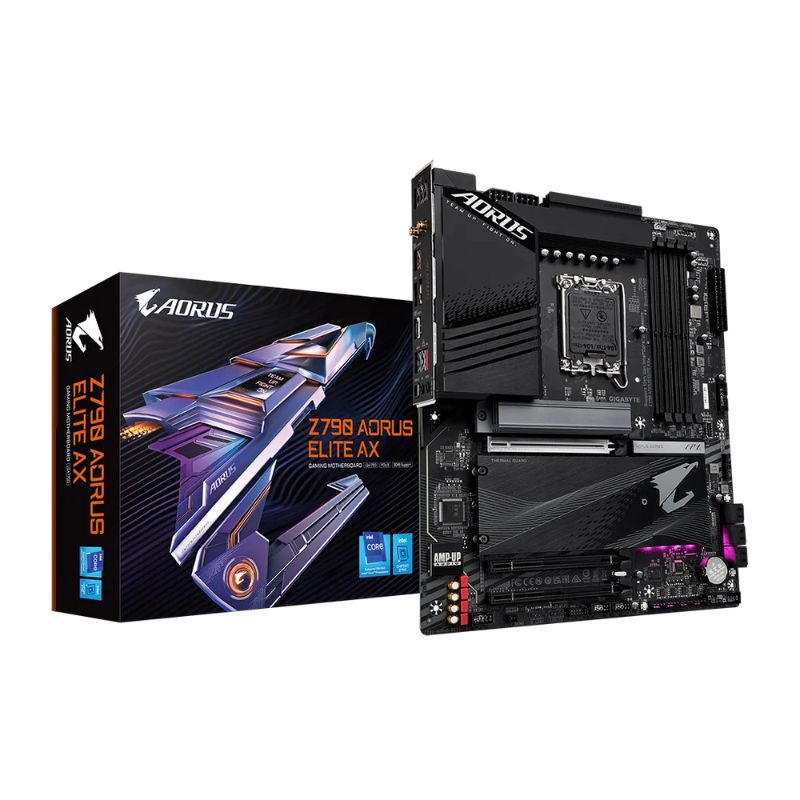

Gigabyte Z790 AORUS ELITE AX DDR5
295,00 €
SKU: 002-4607
Categories: Intel Motherboards, Motherboards
Brand: Gigabyte
Description
| CPU | Socket: LGA1700 Supported Processors: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 Cache: Varies with CPU (Refer to “CPU Support List” for details) |
|---|---|
| Chipset | Intel® Z790 Express Chipset |
| Memory | Supported Memory: DDR5 Speeds: Up to DDR5 7600(O.C.) DIMM Slots: 4 x DDR5 (Max 256GB, 64GB per DIMM) Features: Dual Channel, XMP, ECC (non-ECC mode), Un-buffered DIMM support |
| Onboard Graphics | Integrated Graphics: Intel® HD Graphics HDMI: 4096×2160@60Hz (HDMI 2.1, HDCP 2.3) DisplayPort: 4096×2304@60Hz (DP 1.2, HDCP 2.3) |
| Audio | Codec: Realtek® High Definition Audio Channels: 2/4/5.1/7.1 Features: S/PDIF Out, Customizable Audio Jack Functionality |
| LAN | Realtek® 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) |
| Wireless | Wi-Fi: Intel® Wi-Fi 6E AX211 Frequencies: 2.4/5/6 GHz Bluetooth: 5.3 Speed: Up to 2.4Gbps (Actual data rate may vary) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (for GPU/NVMe SSD) Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4 |
| Storage | CPU: 1 x M.2 (PCIe 4.0 x4/x2, Type 22110/2280) Chipset: 3 x M.2 (PCIe 4.0 x4/x2, SATA support on one slot) SATA: 6 x SATA 6Gb/s RAID: 0, 1, 5, 10 (NVMe & SATA) |
| USB | Back Panel: 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Internal: 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 headers (4 ports) |
| Internal I/O | Power: 1 x 24-pin ATX, 2 x 8-pin ATX 12V Cooling: 1 x CPU fan, 1 x Water cooling CPU fan, 3 x System fan, 1 x System fan/water cooling pump RGB: 2 x Addressable LED headers, 2 x RGB LED headers Other: TPM, Thunderbolt headers, Q-Flash Plus, Clear CMOS |
| Back Panel | Ports: 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 Video: 1 x HDMI, 1 x DisplayPort Audio: 2 x Audio Jacks, 1 x Optical S/PDIF Out LAN: 1 x RJ-45 (2.5GbE) Wireless: 2 x SMA Antenna Connectors Other: Q-Flash Plus Button, Clear CMOS Button |
| BIOS | AMI UEFI BIOS (256Mbit Flash), ACPI 5.0, SM BIOS 2.7, PnP 1.0a |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN Bandwidth Management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX (30.5cm x 24.4cm) |
