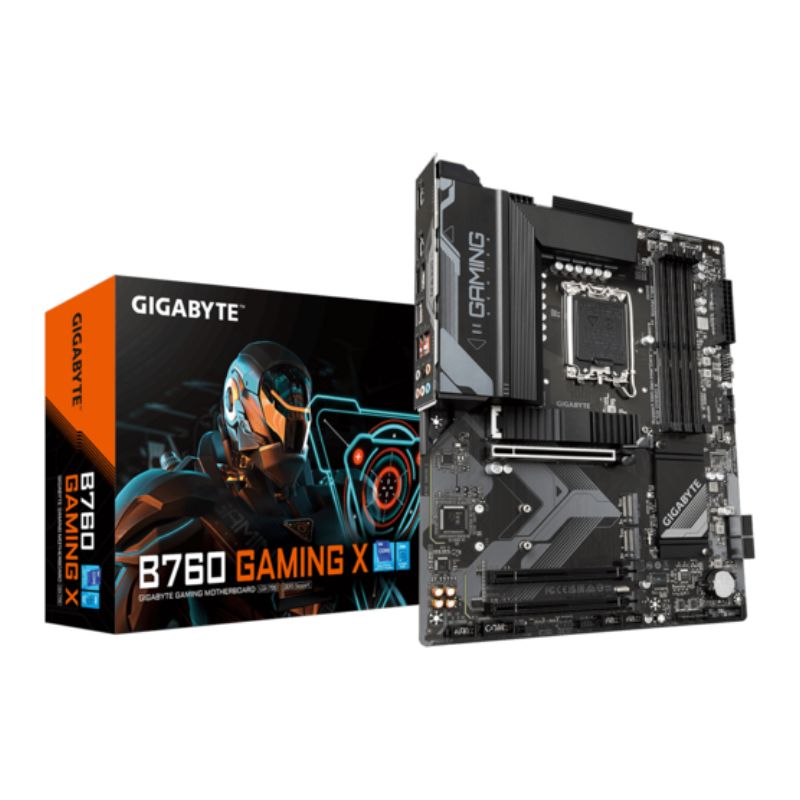

Gigabyte B760 GAMING X DDR5
199,00 €
In stock
SKU: 002-4757
Categories: Intel Motherboards, Motherboards
Brand: Gigabyte
Description
| Feature | Specification |
|---|---|
| Model | GIGABYTE B760 ATX Motherboard |
| CPU | Supports Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold, and Celeron® Processors (LGA1700), L3 cache varies by CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR5 DIMM sockets, up to 256GB (64GB per DIMM) Supports DDR5 7600(O.C.) to 4000 MT/s Dual channel architecture Supports ECC & non-ECC Un-buffered DIMM Supports XMP memory modules |
| Graphics | Integrated Intel® HD Graphics 1 x DisplayPort (4096×2304@60Hz, DisplayPort 1.2, HDCP 2.3) 1 x HDMI™ (4096×2160@60Hz, HDMI™ 2.1, HDCP 2.3) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel support Supports S/PDIF Out |
| Ethernet | Realtek® 2.5GbE LAN |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (CPU) 2 x PCIe 3.0 x1 slots (Chipset) |
| Storage | 1 x M.2 (PCIe 4.0 x4/x2, 22110/2280) (CPU) 2 x M.2 (PCIe 4.0 x4/x2, 22110/2280) (Chipset) 4 x SATA 6Gb/s Supports RAID 0/1/5/10 |
| USB (Rear) | 1 x USB 3.2 Gen 2 Type-A (Red) 1 x USB 3.2 Gen 1 Type-C 1 x USB 3.2 Gen 1 Type-A 5 x USB 2.0/1.1 Type-A |
| USB (Front) | 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0/1.1 headers (4 ports) |
| Internal I/O Connectors | 1 x 24-pin ATX Power Connector 1 x 8-pin ATX 12V Power Connector 1 x CPU Fan Header 1 x CPU Fan/Water Pump Header 3 x System Fan Headers 1 x System Fan/Water Pump Header 2 x Addressable LED Strip Headers 2 x RGB LED Strip Headers 3 x M.2 Connectors 4 x SATA 6Gb/s Connectors 1 x Front Panel Header 1 x Front Panel Audio Header 1 x S/PDIF Out Header 1 x USB Type-C Header (USB 3.2 Gen 2) 1 x USB 3.2 Gen 1 Header 2 x USB 2.0/1.1 Headers 1 x Trusted Platform Module Header 1 x Serial Port Header 1 x Q-Flash Plus Button 1 x Reset Jumper 1 x Clear CMOS Jumper |
| Back Panel I/O | 1 x USB 3.2 Gen 2 Type-A (Red) 1 x USB 3.2 Gen 1 Type-C 1 x USB 3.2 Gen 1 Type-A 5 x USB 2.0/1.1 Type-A 1 x DisplayPort 1 x HDMI™ 1 x RJ-45 Ethernet Port 6 x Audio Jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, and Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash & Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM) LAN Bandwidth Management Software |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
