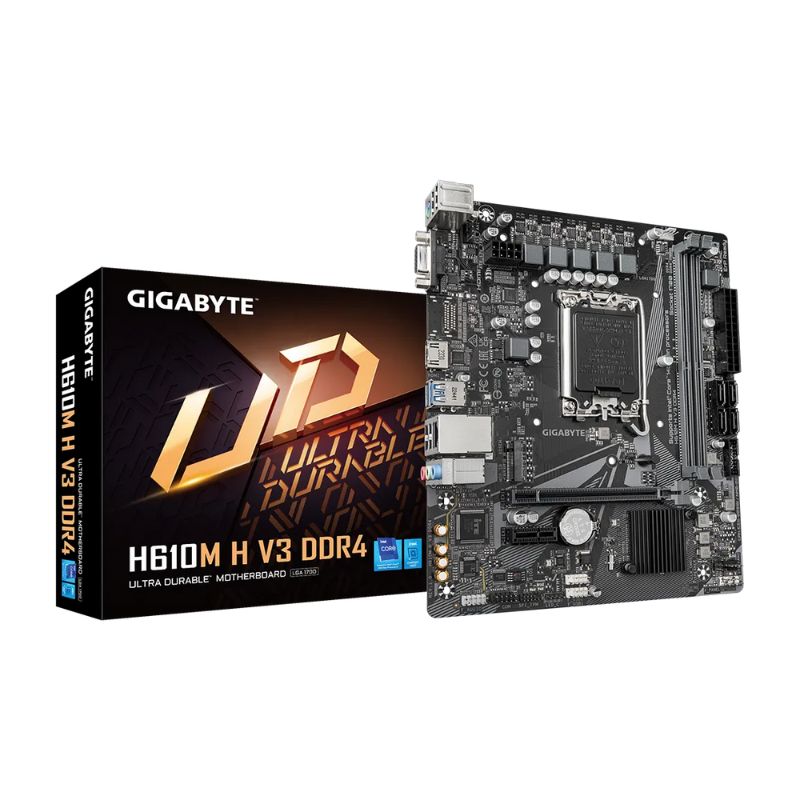

Gigabyte H610M H V3 DDR4
109,00 €
In stock
SKU: 002-4966
Categories: Intel Motherboards, Motherboards
Brand: Gigabyte
Description
Gigabyte H610M H V3 DDR4 Motherboard Specifications
| CPU | |
|---|---|
| – LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors – L3 cache varies with CPU – Refer to “CPU Support List” for more details. |
|
| Chipset | |
| Intel® H610 Express Chipset | |
| Memory | |
| – Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules – 2 x DDR4 DIMM sockets, up to 64GB (32GB per DIMM) – Dual channel memory architecture – Supports ECC Un-buffered DIMM (operates in non-ECC mode) – Supports XMP memory modules – (Refer to “Memory Support List” for more details) |
|
| Onboard Graphics | |
| – Integrated Intel® HD Graphics – 1 x D-Sub (Max Resolution: 1920×1200 @ 60Hz) – 1 x HDMI (Max Resolution: 4096×2160 @ 60Hz) – HDMI 2.1 and HDCP 2.3 supported |
|
| Audio | |
| – Realtek® Audio CODEC – High Definition Audio, 2/4/5.1/7.1-channel – Configurable via audio software |
|
| LAN | |
| Realtek® GbE LAN (1Gbps) | |
| Expansion Slots | |
| – 1 x PCIe 4.0 x16 (CPU) – 1 x PCIe 3.0 x1 (Chipset) |
|
| Storage | |
| – 1 x M.2 PCIe 3.0 x4/x2 (Type 2280/2260) – 4 x SATA 6Gb/s ports |
|
| USB Ports | |
| – **Chipset:** • 4 x USB 3.2 Gen 1 (2 Rear, 2 Internal) • 4 x USB 2.0 (Rear) • 4 x USB 2.0 (Internal) via USB 2.0 Hub |
|
| Internal I/O Connectors | |
| – 1 x 24-pin ATX Power – 1 x 8-pin ATX 12V Power – 1 x CPU Fan Header – 2 x System Fan Headers – 1 x M.2 Socket – 4 x SATA 6Gb/s – 1 x RGB LED Strip Header – 1 x Front Panel Header – 1 x Front Panel Audio Header – 1 x Speaker Header – 1 x USB 3.2 Gen 1 Header – 2 x USB 2.0 Headers – 1 x TPM Header – 1 x Serial Port Header – 1 x Clear CMOS Jumper – 1 x Chassis Intrusion Header |
|
| Back Panel Connectors | |
| – 1 x PS/2 Keyboard/Mouse Port – 1 x D-Sub – 1 x HDMI – 2 x USB 3.2 Gen 1 – 4 x USB 2.0 – 1 x RJ-45 LAN – 3 x Audio Jacks |
|
| BIOS | |
| – 128 Mbit Flash, AMI UEFI BIOS – PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
|
| Unique Features | |
| – **APP Center:** • @BIOS • EasyTune • Smart Backup • System Information Viewer – **Q-Flash Support** |
|
| Bundled Software | |
| – Norton® Internet Security (OEM) – LAN Bandwidth Management Software |
|
| Operating System | |
| – Supports Windows 11 64-bit / Windows 10 64-bit | |
| Form Factor | |
| Micro ATX, 22.3cm x 19.3cm | |
